When mapping out a laser engraving business checklist, the initial focus often lands on workspace logistics, marketing strategies, and material sourcing. However, the foundational equipment you choose ultimately determines what products you can manufacture, how fast you can fill orders, and the profit margins your business can sustain.
Many aspiring shop owners ask: what do I need to start a laser engraving business that can scale cleanly over time? Focusing on high-speed permanent metal marking and 3D relief carving unlocks premium commercial markets that offer significantly higher margins.
Understanding MOPA fiber laser technology, structural requirements, and technical specifications ensures you select hardware that genuinely serves your long-term production needs.
Understanding MOPA Fiber Laser Technology for Business Production
Selecting the correct equipment setup depends on understanding how pulse control impacts metal processing. MOPA fiber source technology offers distinct advantages for commercial processing.
What is a MOPA Fiber Laser?
Master Oscillator Power Amplifier (MOPA) fiber lasers represent an advanced evolution in fiber laser engineering. Operators can independently adjust both pulse frequency and pulse duration (pulse width). This granular control allows for fine heat management, enabling vibrant surface oxidation color marking on stainless steel and titanium, clean dark marking on anodised aluminum, and precise 3D relief etching without burning surrounding material.
Key Hardware Considerations for Commercial Fiber Setups
When evaluating a dedicated fiber laser for your production setup, several technical components dictate everyday output quality and ease of use:
-
Galvanometer System Speed: Galvanometer mirrors control the laser beam's movement across the workpiece. High-grade galvo heads with quality silicon reflectors enable marking speeds up to 10,000mm/s, drastically reducing job cycle times compared to traditional gantry-driven systems.
-
Autofocus Systems: Precise focal length is essential for crisp lines and accurate depth. Integrated one-touch autofocus mechanisms eliminate manual focal measuring errors, simplifying job setup for workpieces of varying heights.
-
Calibrated Field Lenses: F-theta field lenses flatten the focal plane across the designated working envelope. Proper factory tuning ensures consistent beam density and power output from the absolute center to the outer edges of the working area.
-
Footprint and Chassis Design: Traditional industrial marking systems often feature heavy, split-chassis configurations that consume considerable bench space. Modern integrated units combine the power supply, optical path, and control systems into a single compact housing.
Technical Highlight: Monport GM 60W Pro Integrated JPT MOPA Fiber Laser Engraver
| Parameter | Specification Details |
| Product Dimensions | 400 x 330 x 620mm |
| Product Weight | 16.6kg |
| Laser Power | 60W |
| Laser Type | MOPA Fiber Laser |
| Wavelength | 1064nm |
| Frequency Range | 1-4000kHz |
| Pulse Width | 2-500 ns |
| Rated Voltage | 220V |
| Engraving Area | 6.9 x 6.9 in. (175 x 175mm) |
| Max. Engraving Speed | 10,000mm/s (393.7 ips) |
| Engraving Accuracy | 0.01mm |
| Focus Mechanism | One-Touch Autofocus |
| Compatible OS | Windows / macOS |
| Compatible Software | BslAppSimple, LightBurn |
| Expected Service Life | 100,000 hr. |
For businesses looking to integrate commercial-grade metal marking, deep carving, and color processing into their workflow, the Monport GM 60W Pro Integrated JPT MOPA Fiber Laser Engraver & Marking Machine with AutoFocus provides a robust hardware solution.
High-Value Metal Project Opportunities
Integrating high-speed MOPA fiber capabilities into your production lineup allows you to offer specialized, high-margin items:
-
Custom Stainless Steel Drinkware: Permanently etch intricate logos, artwork, or high-contrast branding onto insulated tumblers and flasks.
-
3D Relief Coins & Medallions: Produce tactile, deeply carved custom brass coins, challenge medals, and commemorative tokens for corporate or club clients.
-
Industrial Asset & Serial Tags: Manufacture durable, chemical-resistant anodised aluminum serial plates and identification tags built for rugged industrial use.
-
Color Oxide Marking on Metals: Utilize the variable 2-500 ns pulse width parameters to create durable, non-fading color layers on titanium jewellery and stainless steel components without paints or chemical treatments.
Key Engineering Features
-

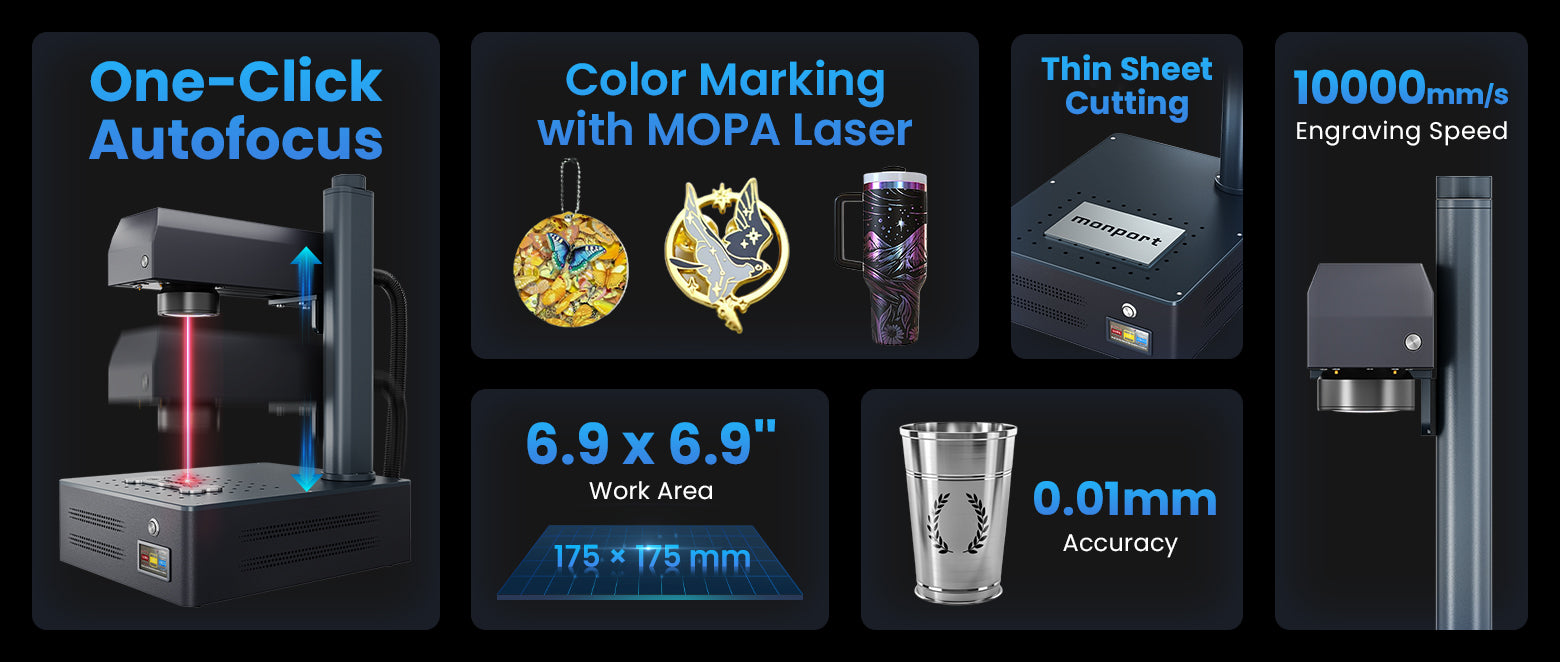

One-Touch Autofocus: The GM Pro Series comes equipped with an integrated one-touch auto-focus feature, enabling faster, highly repeatable focus alignment for enhanced operational precision.
-
Galvanometer & Optical System: The custom galvo setup utilizes high-quality silicon reflectors to push marking speeds up to 10,000mm/s. Working alongside a custom F-theta field mirror, the system maintains a fine engraving accuracy of 0.01mm.
-
Tuned Working Field: Factory-calibrated for an optimal 175x175mm working area, the unit maintains consistent power delivery across the entire field, preventing edge-firing power drop-offs or perimeter distortion.
-
Deep Carving & 3D Relief: Delivering 60W of JPT MOPA fiber power, the unit provides the energy density needed for deep metal etching, tool carving, and fine 3D relief work.
-
Compact Integrated Enclosure: Engineered to be 50% smaller and 50% lighter than traditional split-chassis designs, the 16.6kg unit maximizes workspace efficiency without sacrificing structural stability or performance.
Key Takeaways
-
Evaluate Production Needs First: Define your intended material focus before committing to hardware to avoid purchasing underpowered or incompatible equipment.
-
Leverage MOPA Flexibility: Adjustable pulse width settings on MOPA fiber machines allow for precise heat management, unlocking color oxidation on stainless steel and deep 3D carving capabilities.
-
Prioritise Workflow Efficiency: Integrated features like one-touch autofocus, high-speed galvos, and cross-platform LightBurn compatibility reduce job prep time and improve repeatable accuracy.
-
Claim Your Reader Discount: Use the exclusive discount code AUBLOG888 at checkout to save on eligible Monport equipment and accessories.
Conclusion
Building out a thorough laser engraving business checklist begins with an honest assessment of your production goals and hardware requirements. Knowing what do I need to start a laser engraving business helps you make informed capital investments that deliver consistent, high-precision results from day one.
Whether you are expanding an existing production floor or launching a brand-new custom workshop, selecting flexible machinery like the Monport GM 60W Pro JPT MOPA unit provides the speed, accuracy, and technical capability needed to target high-value market segments. To assist with your shop launch, apply discount code AUBLOG888 during checkout for exclusive savings on your order. Shop Now!
Frequently Asked Questions
What equipment is needed on a laser engraving business checklist?
A complete setup requires a suitable MOPA fiber laser engraver, a reliable fume extraction or filtration system, wavelength-matched safety glasses (1064nm), vector design software, and initial metal or anodised material inventory.
What do I need to start a laser engraving business focused on metal products?
You need a dedicated MOPA fiber laser engraver, control software like LightBurn or BslAppSimple, proper eye protection rated for 1064nm wavelengths, adequate workspace ventilation, and raw metal or anodised blanks.
What is the advantage of a MOPA fiber laser system?
MOPA fiber lasers offer adjustable pulse widths (duration) in addition to frequency control. This enables precise heat management, allowing operators to engrave delicate plastics, create vibrant color marks on stainless steel and titanium, and perform detailed 3D relief carving without excessive burning.
Can the Monport GM 60W Pro operate on macOS?
Yes, the Monport GM 60W Pro supports both Windows and macOS operating systems and is fully compatible with LightBurn and BslAppSimple control software.
What working area is best for a 60W fiber laser engraver?
A calibrated 175x175mm working field provides an ideal balance between laser energy density and beam coverage, ensuring uniform power distribution and sharp focus right up to the outer edges of the engraving plane.
