Monport GQ 30W (5.9" x 5.9") Fiber Laser for Metal Engraving – Perfect for Small Business & Custom Work
24/7 Service
2-Year Warranty
2-year warranty on machines 1-year warranty on fiber laser source
Free Shipping
Get Tracking Number: 2-3 business days Delivery Time: 4-7 business days
Use Manual
GQ 30W Manual

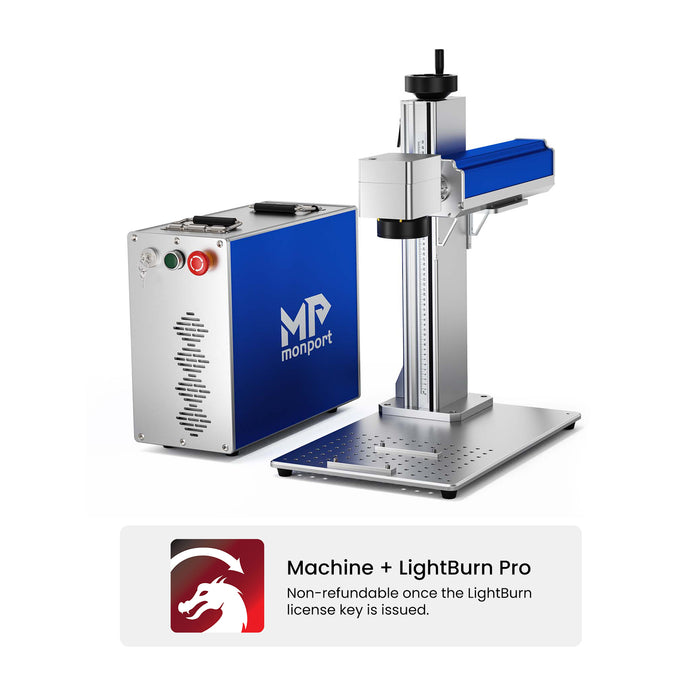

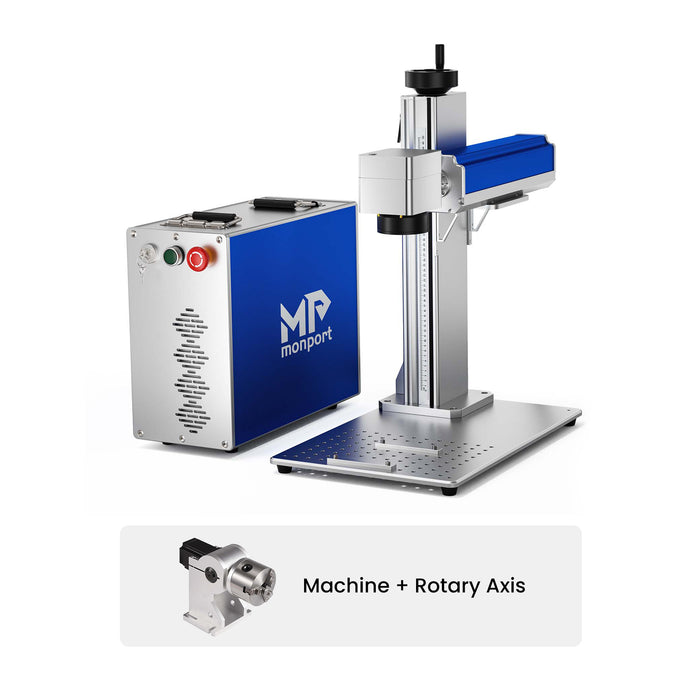

Monport GQ 30W (5.9" x 5.9") Fiber Laser for Metal Engraving – Perfect for Small Business & Custom Work

Save 40% Save 37%
A$5,412.98
A$5,112.99 - A$5,723.98
A$5,412.98 AUD
A$3,399.98 AUD
A$3,099.99 - A$3,435.98
A$3,399.98 AUD
🇦🇺 AU Warehouse Shipping & 2-Year Warranty

Delivery time

3-8 business days（Varies by zip code）

💐Mother Day Sale

00
DAYS
00
HRS
00
MIN
00
SEC
🎉 Save Up to A$6000 + Extra 8% OFF Accessories
Machine
GQ 30W
GQ 50W
Option: + LightBurn Pro
  • Visa
  • Mastercard
  • American Express
  • Google Pay
  • Apple Pay
  • PayPal
  • Discover
  • Diners Club
  • Klarna
Dimension

Working Area: 5.9" X 5.9"

Machine Dimension: 8.2" x 17.7" x 15.3"( 21cm x 45cm x 39cm )

Main Tower Dimension: 13.7" x 21.6" x 26,9" ( 35cm x 55cm x 68.5cm )

Field Lens Dimension: 150mm x 150mm

Fiber Lens Model: M85(85-68MM)

Machine Weight: 69lbs ( 31.5 kg )

GQ30 Fiber Features

Galvo-tech Control

The Sino-Galvo delivers the laser beam with incredible speed and a much higher degree of accuracy than a regular CO2 laser. Its extreme stability ensures quick scanning, engraving, and project turnaround.

The Fiber Laser Source

The source has an estimated lifetime of up to 100,000 hours, depending on power setting usage, which can safely mark most metals, such as stainless steel, gold, silver, and brass.

Advanced Work Space

This laser machine has a built-in workspace grid with removable positioning bars for precise material placement. It also supports an optional rotary axis (not included) to mark tubes, bottles, pipes, and other curved surfaces.

Portable Size

The most versatile machine can accept a wide range of accessories sizes and fits well on a desk or can be taken in any studio easily.

Additional Laser Guidance

Once properly adjusted, the external red dot locator calibrates with the laser's scanner to allow a quick and accurate laser focus setup.

Manual Focus

By rotating the focus-height wheel, you can quickly focus the galvanometer laser on various materials like gold, silver, brass, stainless steel, etc. Plus, the vertical supporting tower is equipped with a ruler for convenient focus height measurements.

Material Capability

Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium

Non-Metals: Slate, Hard Plastics, Artificial Leather, Colored Acrylic

Package Contents
  • 30 Watt Fiber Laser Marker Machine *1
  • Power Cable *1
  • Foot Pedal *1
  • Laser Safety Glasses *1
  • USB Flash Drive *1
  • Clips *2
  • Bolts *4
  • Instruction Manual *1
Warranty & Certifications
  • 2-year warranty on every fiber laser machine
  • 1-year warranty on fiber laser source
  • CE Certified
Manual List

Trusted by Makers & Businesses Worldwide

High-Speed Production
Finish More Orders in Less Time. With up to 10,000 mm/s engraving speed, you can handle bulk orders efficiently — perfect for growing your engraving business.
Speed: 10000mm/s
Various Materials
Precision Manual Focus – Easy & Reliable
Adjust focus quickly with a simple manual system. This fiber laser engraver with manual focus provides stable and consistent results without calibration errors.
Red Dot Guidance
Manual Focus
Long-Term Reliability
Built to Last 100,000 Hours. Industrial-grade fiber source ensures long lifespan and stable performance for years.
100,000 hours
Galvo-tech
Precision for Profit
Create Clean, Professional Results Every Time. Achieve ultra-fine engraving down to 0.01mm accuracy — ideal for logos, barcodes, jewelry, and detailed designs.
Curved Surfaces
Accuracy: 0.01mm
Compare GQ Fiber Laser Model Technical Specifications
Product GQ 30 GQ 50
Model JL-F30W JL-F50W
Input Power 220-240V 50Hz
Rated Power 30W 50W
Expected Service Life 100,000 hr.
Central Wavelength 1064 nm
Laser Frequency 40-60 kHz 50-100 kHz
Beam Diameter 5.7-8 mm 5.7-8 mm
Beam Quality M2 ＜1.6 ＜1.6
Maximum Pulse Energy 0.75 1
Processing Area 5.9x5.9 in.
(150×150 mm)		 7.9x7.9 in.
(200×200 mm)
Max. Marking Speed 393.7 ips(10000 mm/s)
Min. Marking Depth 0.0002 in.(0.005 mm)
Max. Marking Depth
on a Single Pass		 0.003in.
(0.08mm)		 0.004in.
(0.1mm)
Min. Line Width 0.006 in.(0.15 mm)
Precision ±0.1 µm
Required Operating
Environment		 Max. Humidity <70%
Temp. Range 32-104°F(0 - 40°C)
Compatible Software Lightburn or BslAppSimple (Coexistence of new and old versions, with the new version being BslAppSimple，Lightburn required payment)
MOPA vs Fiber Laser——Which One Fits Your Engraving Needs？
Feature MOPA Laser Fiber Laser
Engraving Type Color making，fine engraving Deep，fast engraving
Materials Stainless steel，aluminum，plastics Metals（gold，silver，iron，steel）
Pulse Cintrol Adjustable Fixed
Applications
 		Jewelry，logo marking ，electronics Tools，automotive，metal plates
Price Range
 		Higher More affordable
What Can You Create & Sell?

Jewelry Engraving
Metal Gifts
Industrial Part Marking
Automotive Parts
Lifestyle Products
Nameplates & Signs
