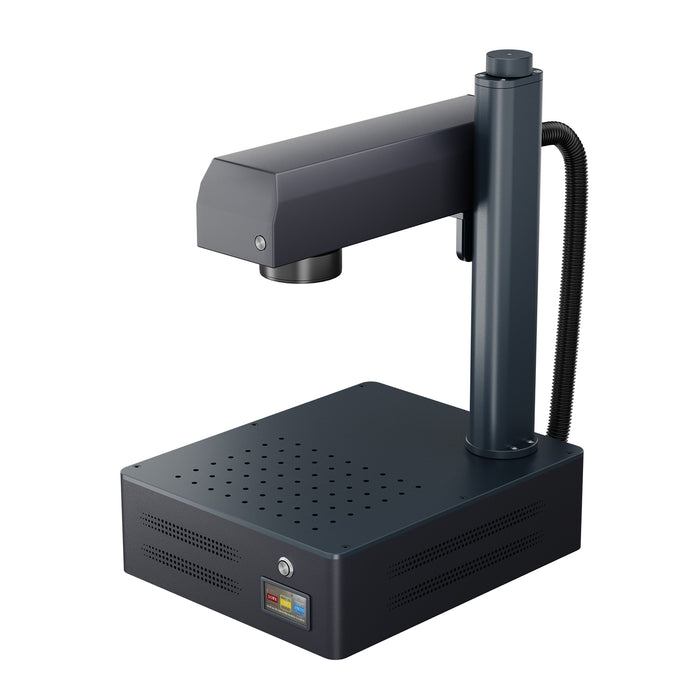

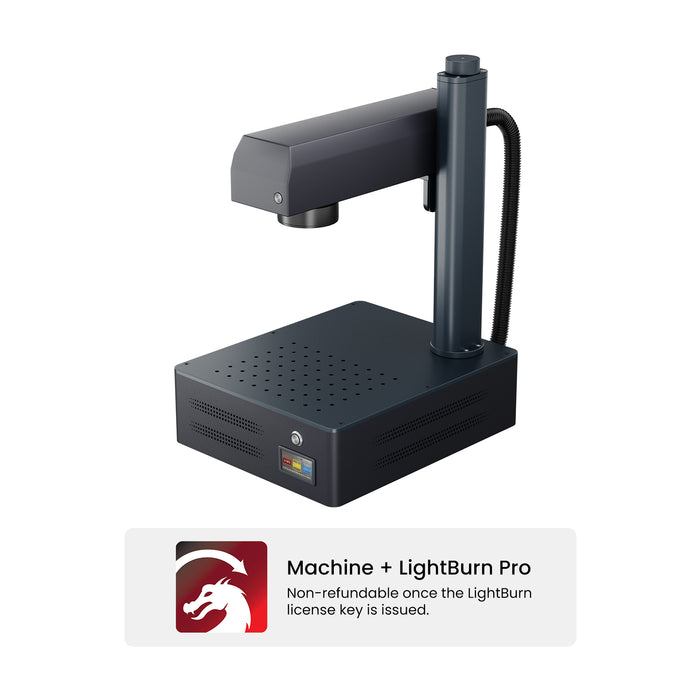

Monport GM 30W Pro Integrated JPT MOPA Fiber Laser Engraver & Marking Machine with AutoFocus
24/7 Service
2-Year Warranty
2-year warranty on machines 1-year warranty on fiber laser source
Free Shipping
Get Tracking Number: 2-3 business days Delivery Time: 4-7 business days
Use Manual
GMpro Manual

Monport GM 30W Pro Integrated JPT MOPA Fiber Laser Engraver & Marking Machine with AutoFocus

Save 34% Save 29%
A$6,999.99
A$6,999.99 - A$9,067.98
A$6,999.99 AUD
A$4,999.99 AUD
A$4,999.99 - A$5,949.98
A$4,999.99 AUD
Free Shipping & 2-Year Warranty

Delivery time

3-8 business days（Varies by zip code）

Pre Sale

00
DAYS
00
HRS
00
MIN
00
SEC
🎉 Save Up to A$6000 + Extra 8% OFF Accessories; Estimated shipping in mid-May
Machine
GM 30W Pro
 GM 60W Pro
Option: machine
  • Visa
  • Mastercard
  • American Express
  • Google Pay
  • Apple Pay
  • PayPal
  • Discover
  • Diners Club
  • Klarna

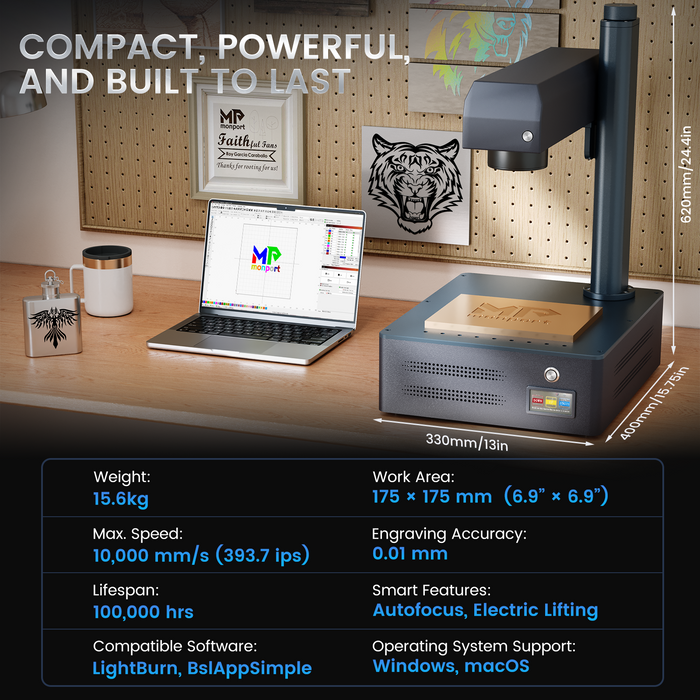

Dimension & Specifications

Product Dimensions：400 x 330 x 620mm

Product Weight：15.6kg

Laser Power：30w

Laser Type：MOPA Fiber Laser

Wavelength：1064nm

Frequency Range：1-4000kHz

Pulse Width：2-500 ns

Rated voltage：220V

Engraving Area：6.9 x 6.9 in.（175x175mm）

Max. Engraving Speed：10000mm/s（393.7 ips）

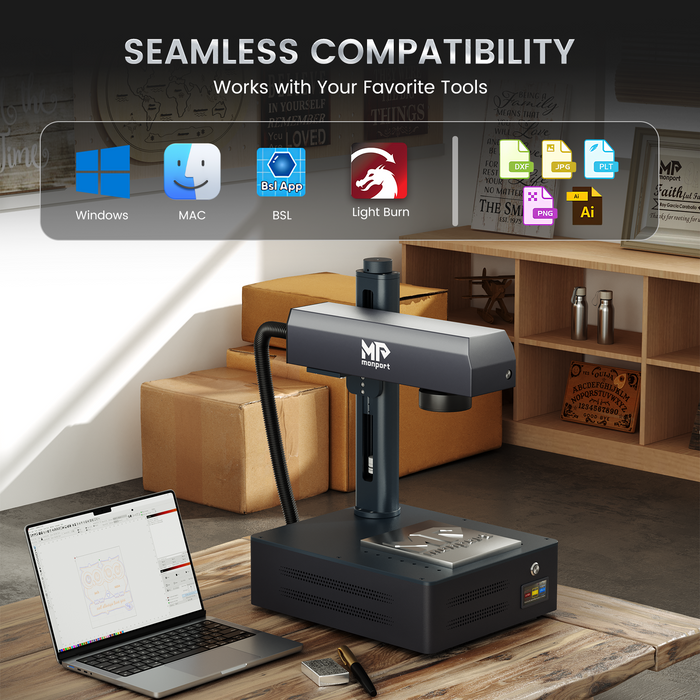

Compatible Operating Systems：Windows / macOS

Compatible Software：BslAppSimple，Lightburn

Expected Service Life：100,000 hr.

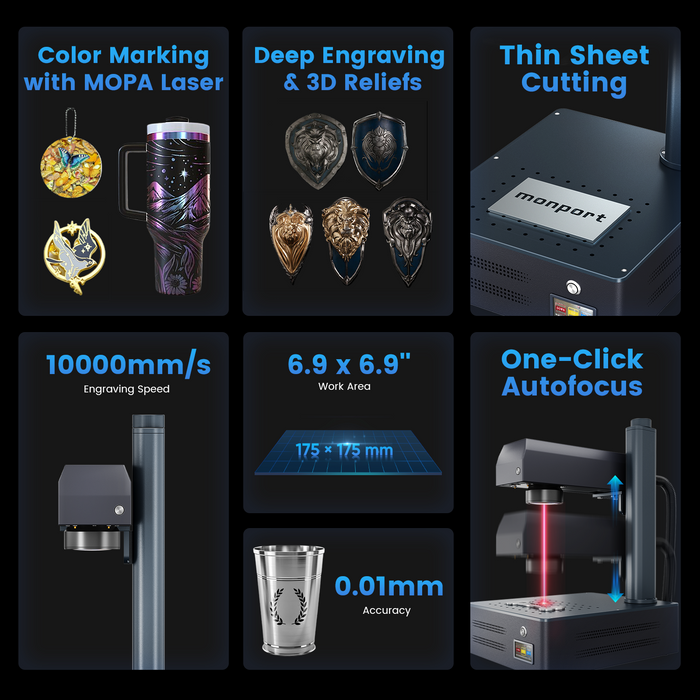

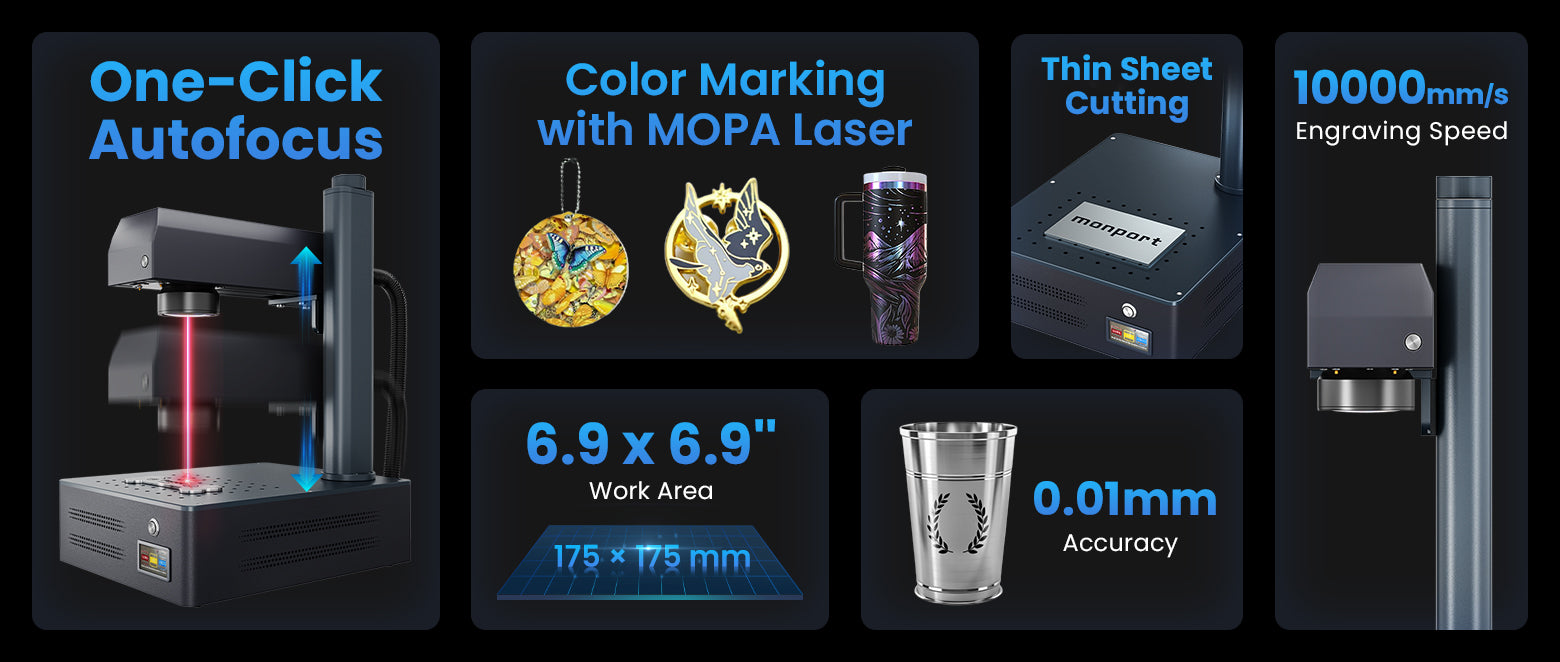

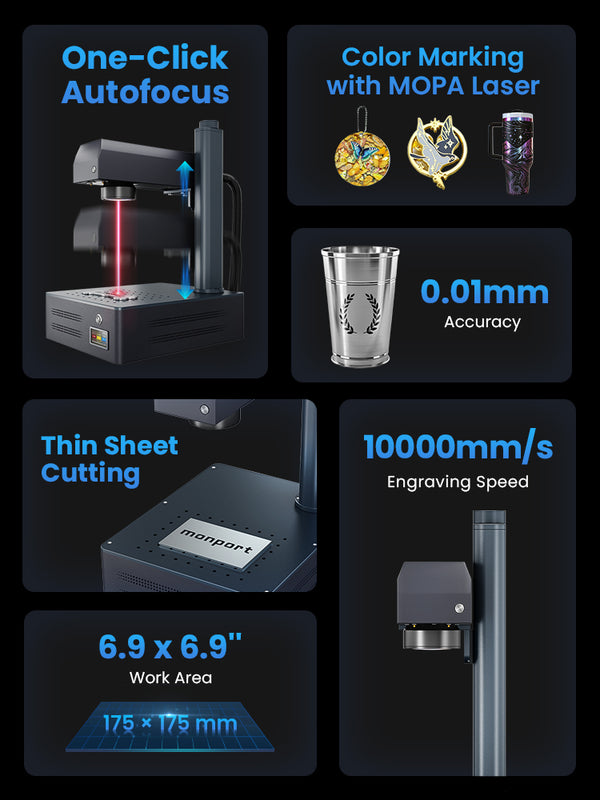

GM30W PRO MOPA Fiber Features

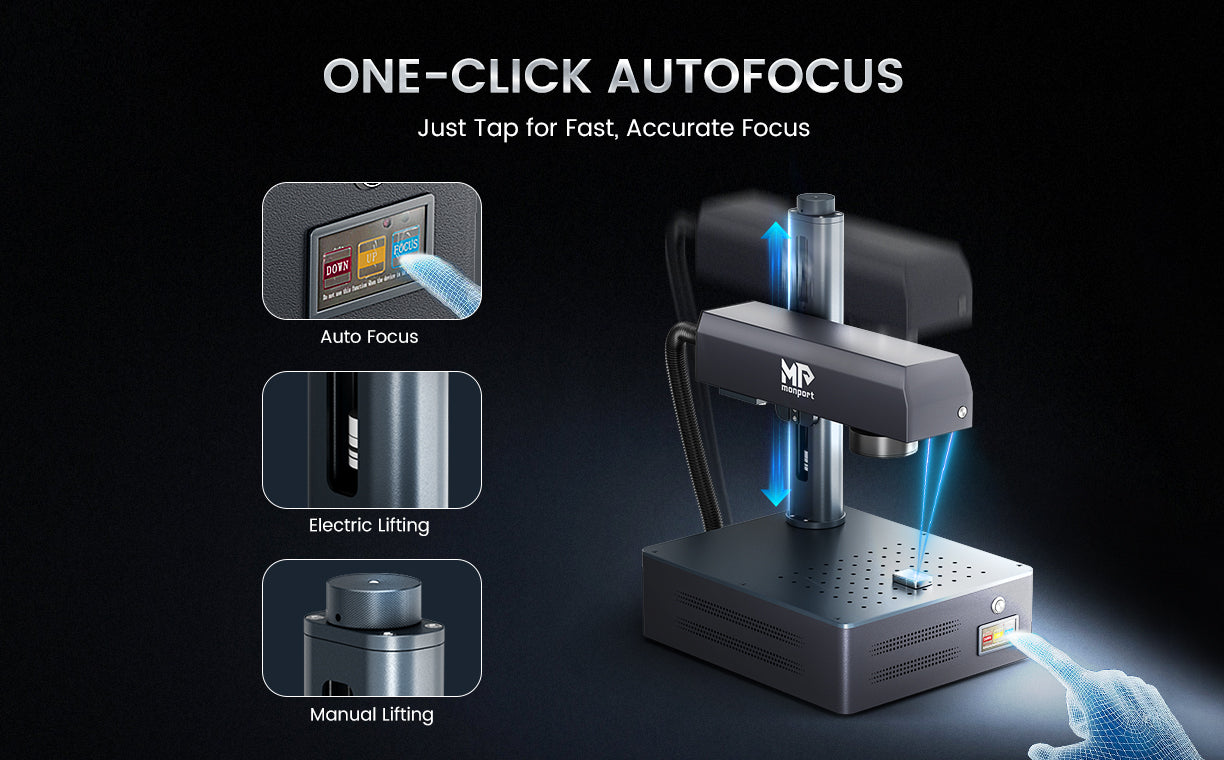

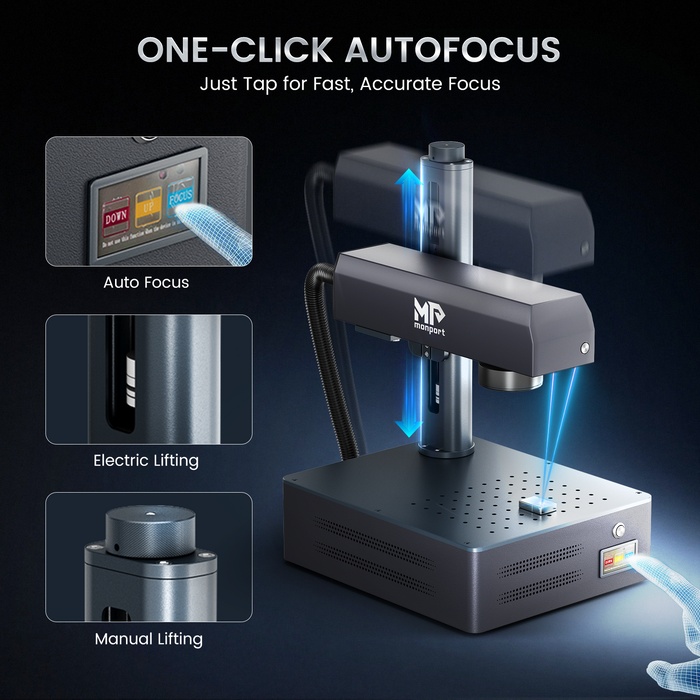

One-Touch Autofocus
The all-new GM Pro Series comes equipped with a cutting-edge one-touch auto-focus feature, enabling faster and more precise engraving results. Experience enhanced convenience and superior performance with every use.

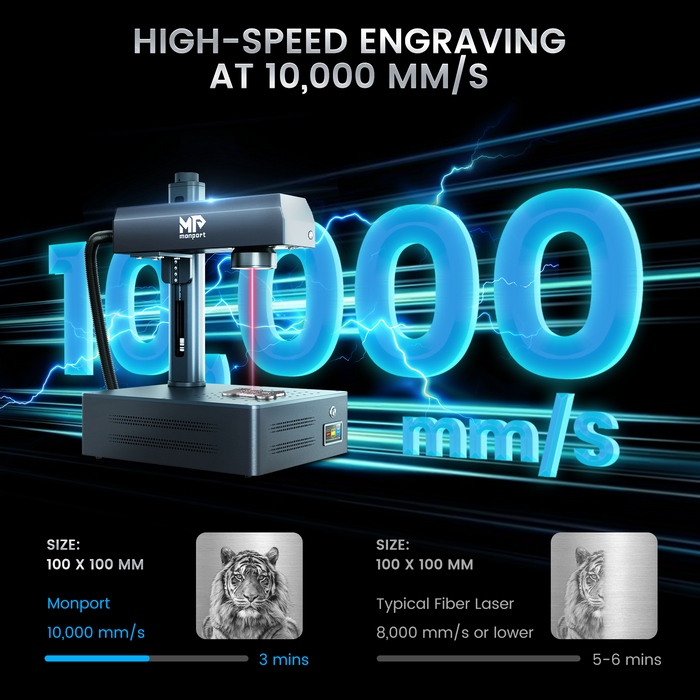

Faster, More Precise, Custom-Engineered Performance

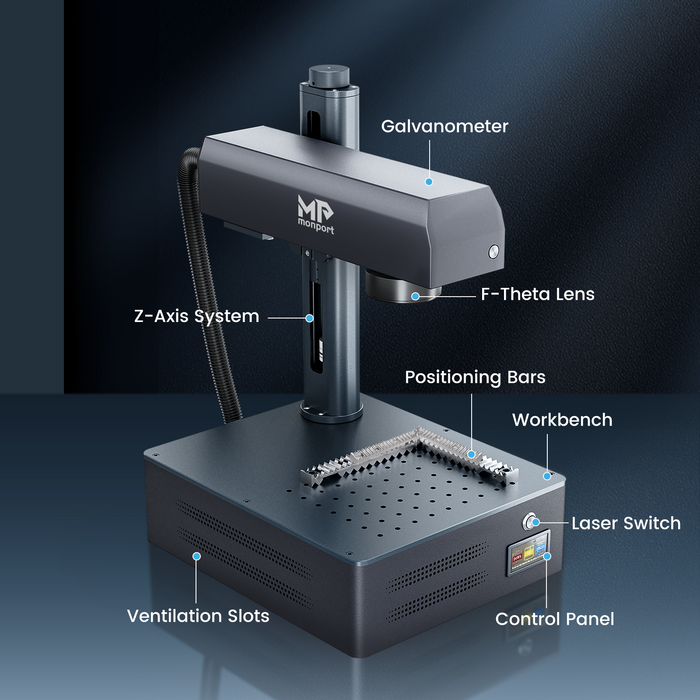

The newly designed galvanometer system features high-quality silicon material reflectors, pushing the maximum speed to an impressive 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed.

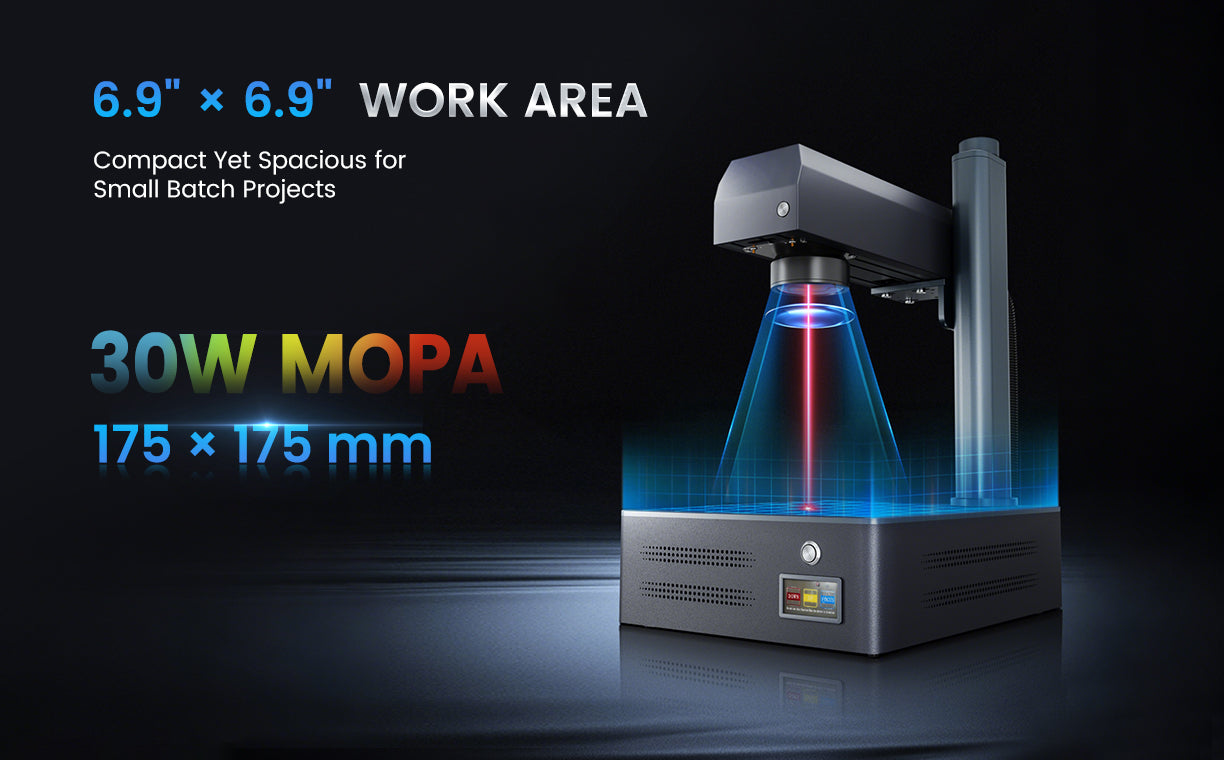

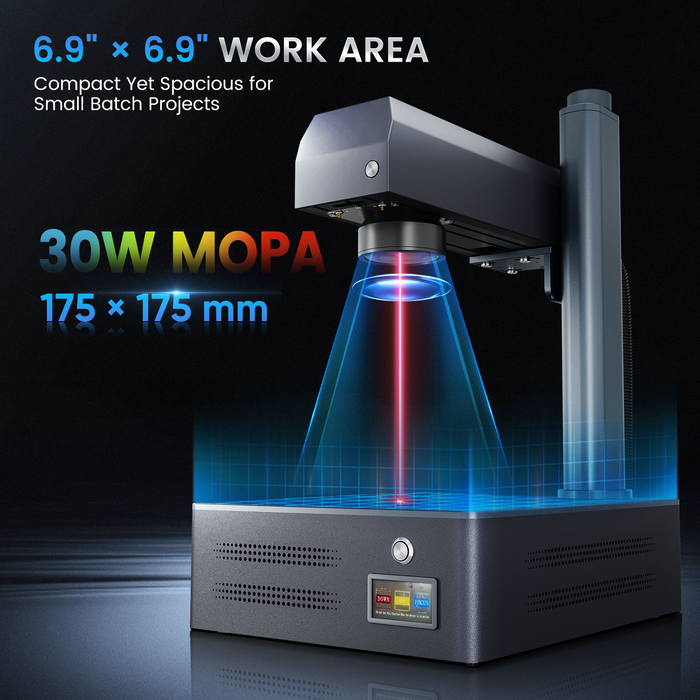

Perfectly Sized Working Area
For the 30W Mopa fiber laser, the optimal working area is 175*175mm. Going beyond this size may lead to subpar engraving results or even distortion. Thanks to Monport's precise tuning, you can engrave at the edges with consistent power, ensuring no weak spots or loss of intensity.

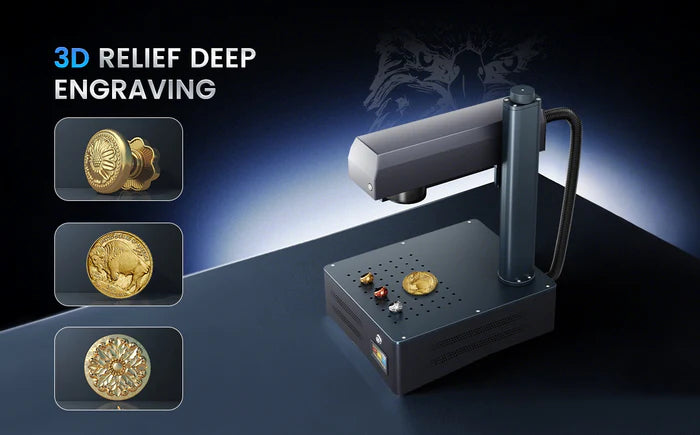

Deep Engraving and 3D Relief Engraving
The higher the power, the greater the depth and detail you can achieve in your engravings. With enhanced power, the machine delivers superior deep engraving and 3D relief results, providing unmatched precision and depth for intricate designs.

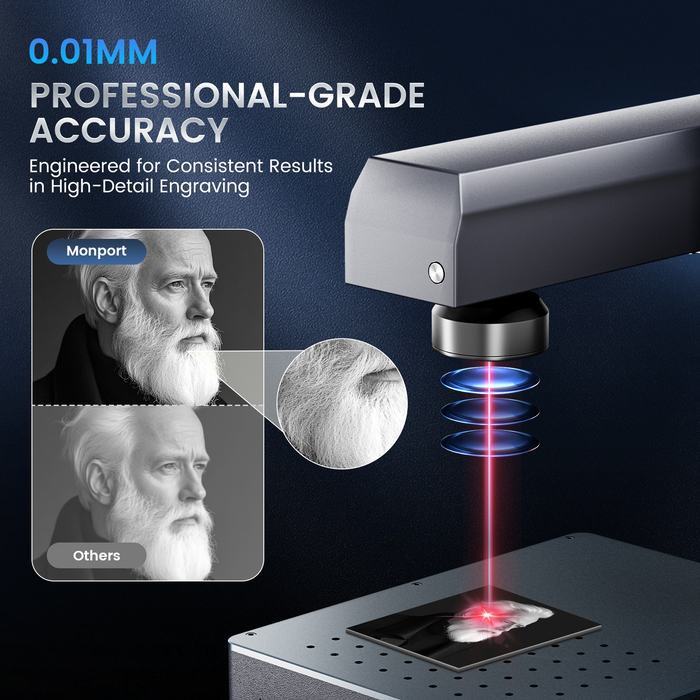

0.01mm Professional-Grade Accuracy
Engineered for precision, this machine delivers consistent, high-detail engraving with an accuracy of 0.01mm, ensuring flawless results with every use.

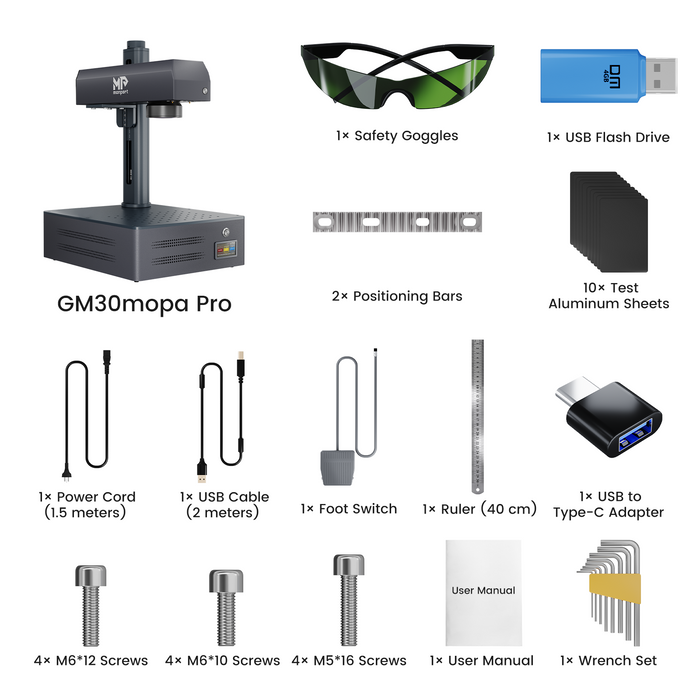

Package List

1x Fiber Laser Engraver

1x USB Cable(2 meters)

1x Power Cord(1.5 meters)

1x USB Flash Drive

1x User Manual

1x Goggles

1x Wrench Set

1x Ruler（40cm）

1x Foot Switch

2x Positioning Bars

4x Screws M6*12

4x Screws M6*10

4x Screws M5*16

1x Usb to TypeC Adapter

10x Test Aluminum Sheets

Warranty & Certifications

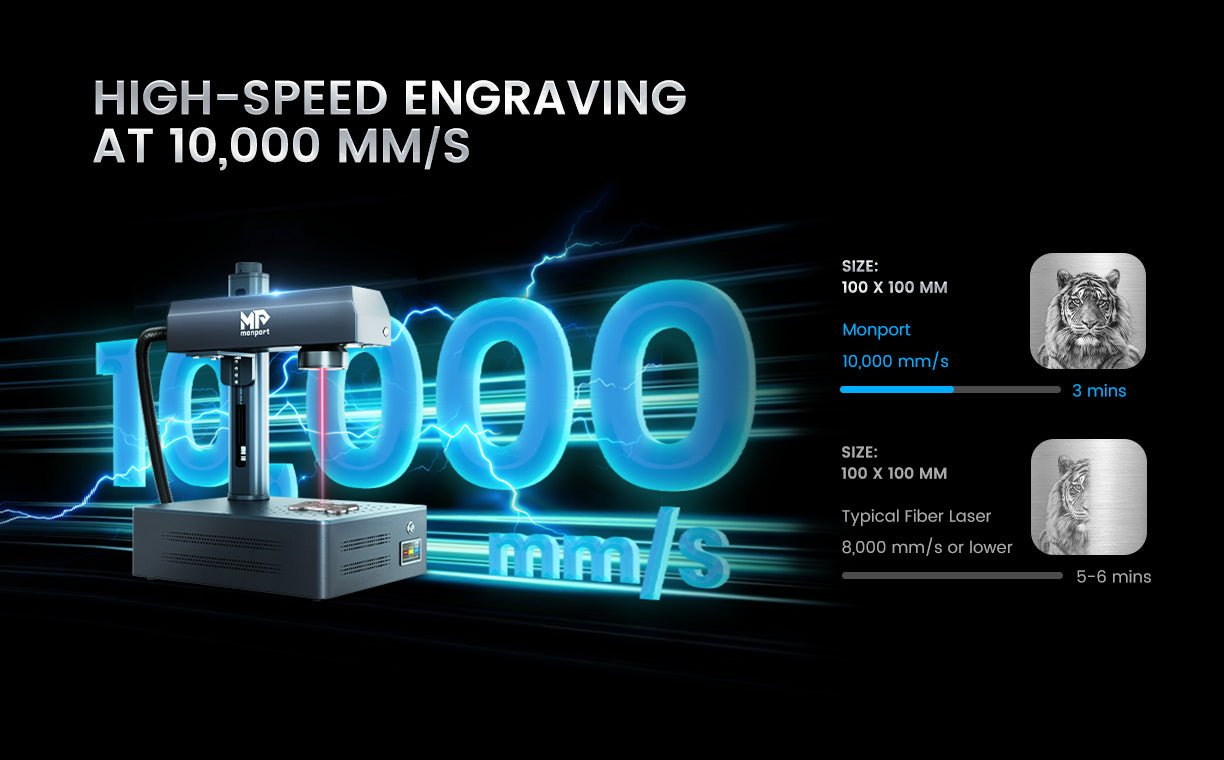

Faster, More Precise, Custom-Engineered Performance

Faster, More Precise, Custom-Engineered Performance

The newly designed galvanometer system features high-quality silicon material reflectors, pushing the maximum speed to an impressive 10,000mm/s. Coupled with a custom F-theta field mirror, this advanced marking system ensures engraving accuracy down to 0.01mm, delivering exceptional precision and speed.

One-Touch Autofocus

One-Touch Autofocus

The all-new GM Pro Series comes equipped with a cutting-edge one-touch auto-focus feature, enabling faster and more precise engraving results. Experience enhanced convenience and superior performance with every use.

Perfectly Sized Working Area

Perfectly Sized Working Area

For the 30W Mopa fiber laser, the optimal working area is 175*175mm. Going beyond this size may lead to subpar engraving results or even distortion. Thanks to Monport's precise tuning, you can engrave at the edges with consistent power, ensuring no weak spots or loss of intensity.

Deep Engraving and 3D Relief Engraving

Deep Engraving and 3D Relief Engraving

The higher the power, the greater the depth and detail you can achieve in your engravings. With enhanced power, the machine delivers superior deep engraving and 3D relief results, providing unmatched precision and depth for intricate designs.

GM30W Mopa Pro VS GM60W Mopa Pro
Product Name GM30 Mopa Pro GM60 Mopa Pro
Laser Power 30 W 60 W
Engraving Area 6.9 × 6.9 in.
(175 × 175 mm)		 6.9 × 6.9 in.
(175 × 175 mm)
Max. Marking Depth
(single pass)		 0.003 in.
(0.08 mm)		 0.004 in.
(0.10 mm)
Max Engraving Speed 10 000 mm/s
(393.7 ips)		 10 000 mm/s
(393.7 ips)
Engraving Accuracy 0.01 mm 0.01 mm
Positioning Accuracy ± 0.1 µm ± 0.1 µm
Laser Source JPT JPT
Input Power 110–120 V 60 Hz 110–120 V 60 Hz
Beam Quality M² < 1.4 < 1.5
Beam Diameter 7 ± 1 mm 7 ± 1 mm
Maximum Pulse Energy 1 mJ 2 mJ
Max Z Height 400 mm 400 mm
Central Wavelength 1 064 nm 1 064 nm
Frequency Range 1–4 000 kHz 1–4 000 kHz
Pulse Width 2–500 ns 2–500 ns
Expected Service Life (MTTF) 100 000 h 100 000 h
Color Engraving YES YES
Focus Mode Autofocus Autofocus
Electric Lifting YES YES
Cooling Type Air Cooling Air Cooling

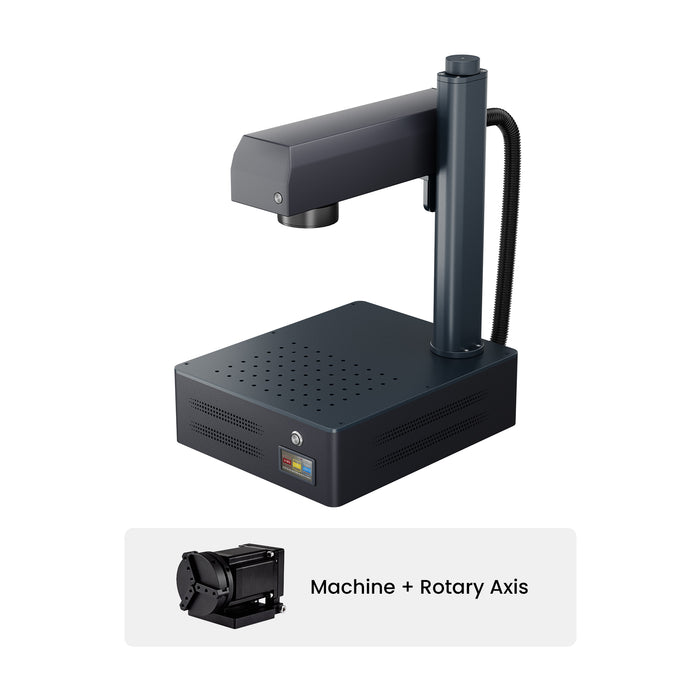

Rotation Axis Function YES YES
Galvanometer Thread Size M68 M68
Field Lens Dimension M85 M85
Materials Suitable for Engraving Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc. Brass, Hard Plastic, Titanium, Brick, Marble, Gold, Carbide, Silver, Tungsten, Granite, Steel, etc.
Compatible Operating Systems Windows / macOS Windows / macOS
Compatible Software BSLcad, Lightburn BSLcad, Lightburn
Data Transmission USB Cable USB Cable
Product Dimensions (L × W × H) 15.75 × 13.00 × 24.41 in
(40 × 33 × 62 cm)		 15.75 × 13.00 × 24.41 in
(40 × 33 × 62 cm)
Package Dimension (L × W × H) 23.23 × 17.32 × 15.35 in
(59 × 44 × 39 cm)		 23.23 × 17.32 × 15.35 in
(59 × 44 × 39 cm)
Product Weight 34.4 lb (15.6 kg) 36.6 lb (16.6 kg)
Gross Weight 43.0 lb (19.5 kg) 45.2 lb (20.5 kg)
Warranty 2-year
(1 year for laser source)		 2-year
(1 year for laser source)

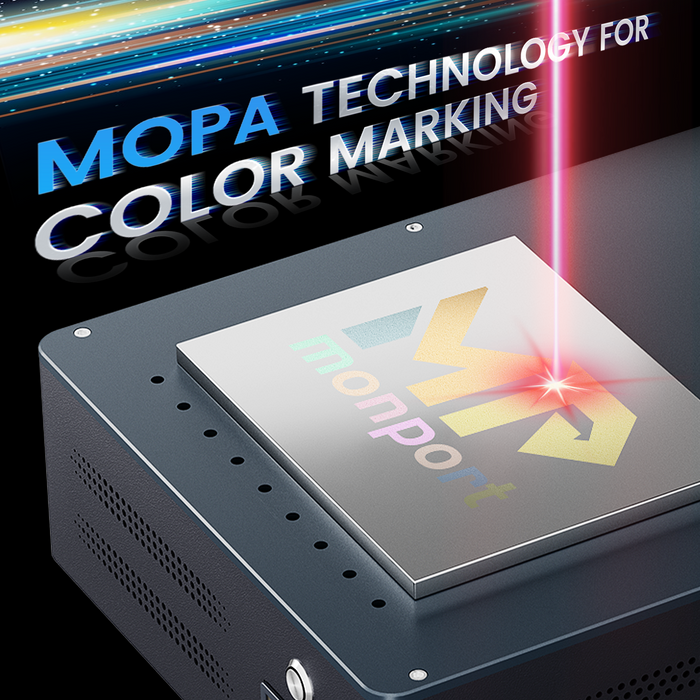

MOPA vs Fiber Laser——Which One Fits Your Engraving Needs？
Feature MOPA Laser Fiber Laser
Engraving Type Color making，fine engraving Deep，fast engraving
Materials Stainless steel，aluminum，plastics Metals（gold，silver，iron，steel）
Pulse Cintrol Adjustable Fixed
Applications
 		Jewelry，logo marking ，electronics Tools，automotive，metal plates
Price Range
 		Higher More affordable

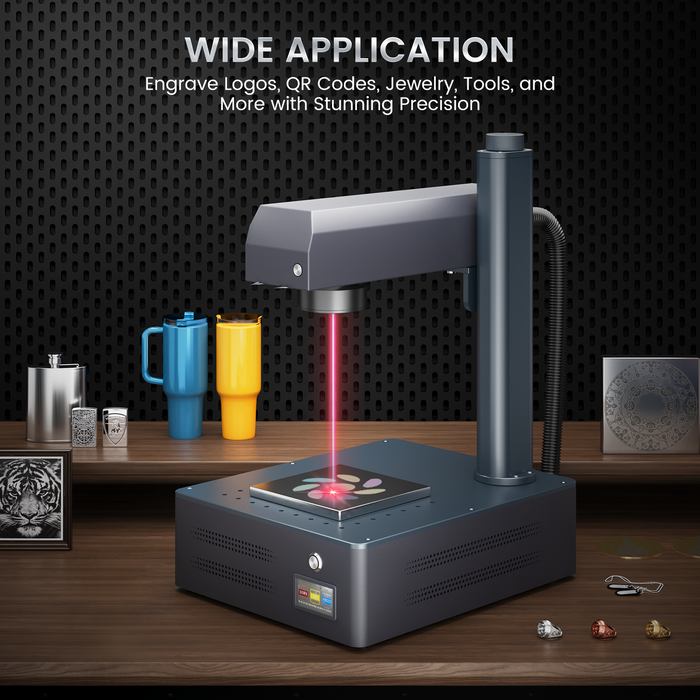

What Can You Create & Sell?
