Working Area: 7.9" X 7.9"

Machine Dimension: 8.2" x 17.7" x 15.3"( 21cm x 45cm x 39cm )

Main Tower Dimension: 13.7" x 21.6" x 26,9" ( 35cm x 55cm x 68.5cm )

Field Lens Dimension: 200mm x 200mm

Fiber Lens Model: M85(85-68MM adapter)

Machine Weight: 73.8lbs ( 33.5 kg )

Galvo-tech Control

The Sino-Galvo delivers the laser beam with incredible speed and a much higher degree of accuracy than a regular CO2 laser. Its extreme stability ensures quick scanning, engraving, and project turnaround.

The Fiber Laser Source

The source has an estimated lifetime of up to 100,000 hours, depending on power setting usage, which can safely mark most metals, such as stainless steel, gold, silver, and brass.


Upgraded Button Design

Equipped with an emergency button for instant response. Our key switch bars unauthorized access, and the dual fans ensure continuous, stable operation.

Pre-assembled Fiber Laser

Monport split fiber machine arrives ready right out of the box, eliminating setup hassles. Dive straight into your metal engraving projects and bring your creative visions to life effortlessly.

Advanced Work Space

This laser machine has a built-in workspace grid with removable positioning bars for precise material placement. It also supports an optional rotary axis (not included) to mark tubes, bottles, pipes, and other curved surfaces.

Portable Size

The most versatile machine can accept a wide range of accessories sizes and fits well on a desk or can be taken in any studio easily.

Additional Laser Guidance

Once properly adjusted, the external red dot locator calibrates with the laser's scanner to allow a quick and accurate laser focus setup.

Manual Focus

By rotating the focus-height wheel, you can quickly focus the galvanometer laser on various materials like gold, silver, brass, stainless steel, etc . Plus, the vertical supporting tower is equipped with a ruler for convenient focus height measurements.

Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium

Non-Metals: Slate, Hard Plastics, Artificial Leather, Colored Acrylic

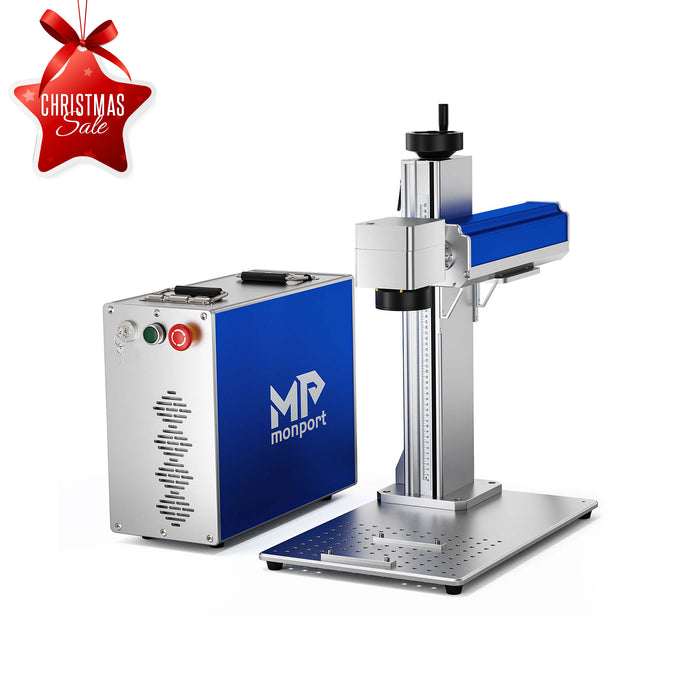

• 50 Watt Fiber Laser Marker Machine *1
• Power Cable *1
• Foot Pedal *1
• Laser Safety Glasses *1
• USB Flash Drive *1
• Clips *2
• Bolts *4
• Instruction Manual *1

• 2-year warranty on every fiber laser machine
• 1-year warranty on fiber laser source
• FDA Approved & CE Certified

• Download the User Manual: 50W Fiber User Manual
• Download the Software: EzCad2
• Download the Software Manual: EzCad2 Description
• We offer compatible accessories: Fiber Laser Rotary
