Monport GQ 50W Fiber Laser Engraver main picture Australia

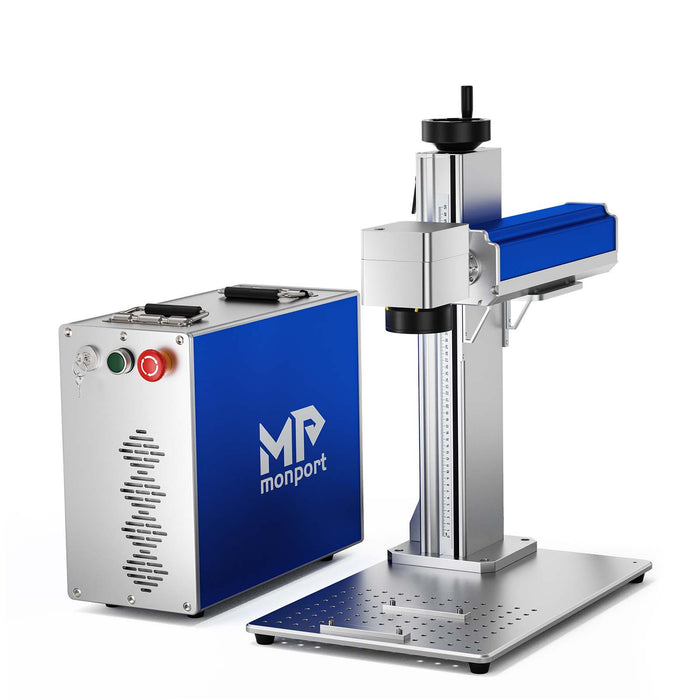

Monport GQ 50W (7.9" x 7.9") Fiber Laser Engraver & Marking Machine with FDA Approval

Save 38% Save 38%
A$7,276.99
A$7,276.99 - A$7,276.99
A$7,276.99 AUD
A$4,479.99 AUD
A$4,479.99 - A$4,789.99
A$4,479.99 AUD

Extra A$200 OFF, Final Pirce: A$ 4279.99

Free Shipping & 2-Year Warranty

Delivery time

3-8 business days（Varies by zip code）

Option: Machine

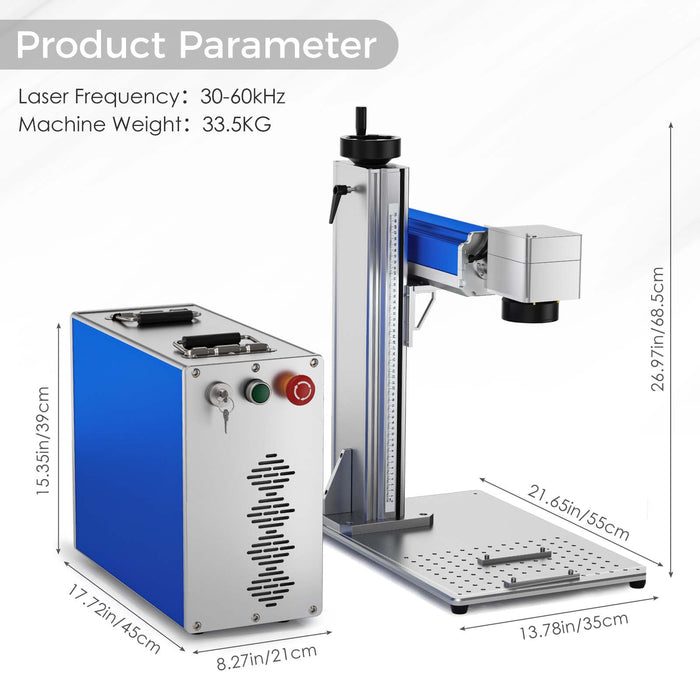

Dimension

Working Area: 7.9" X 7.9"

Machine Dimension: 8.2" x 17.7" x 15.3"( 21cm x 45cm x 39cm )

Main Tower Dimension: 13.7" x 21.6" x 26,9" ( 35cm x 55cm x 68.5cm )

Field Lens Dimension: 200mm x 200mm

Fiber Lens Model: M85(85-68MM adapter)

Machine Weight: 73.8lbs ( 33.5 kg )

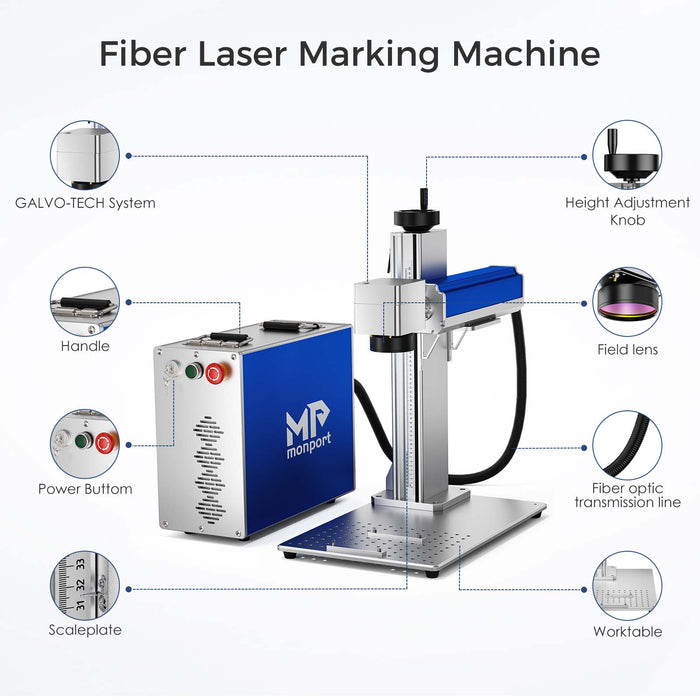

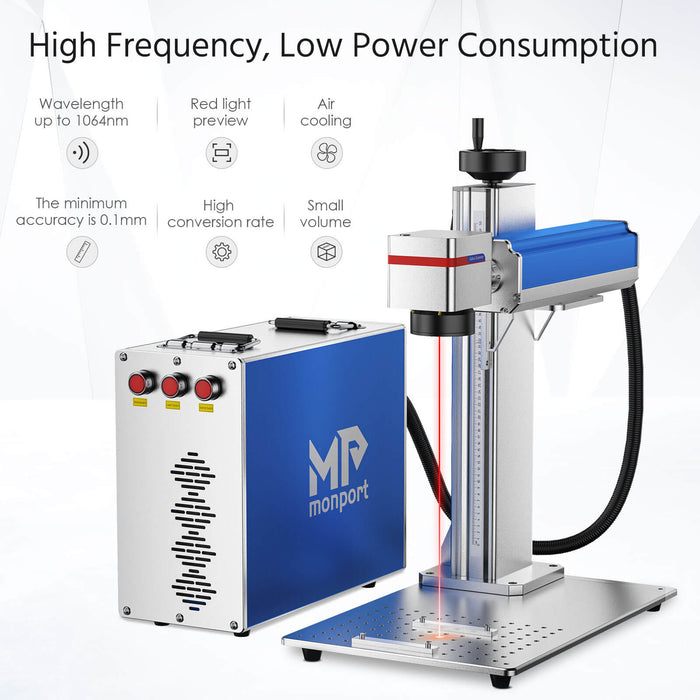

GQ50 Fiber Features

Galvo-tech Control

The Sino-Galvo delivers the laser beam with incredible speed and a much higher degree of accuracy than a regular CO2 laser. Its extreme stability ensures quick scanning, engraving, and project turnaround.

The Fiber Laser Source

The source has an estimated lifetime of up to 100,000 hours, depending on power setting usage, which can safely mark most metals, such as stainless steel, gold, silver, and brass.

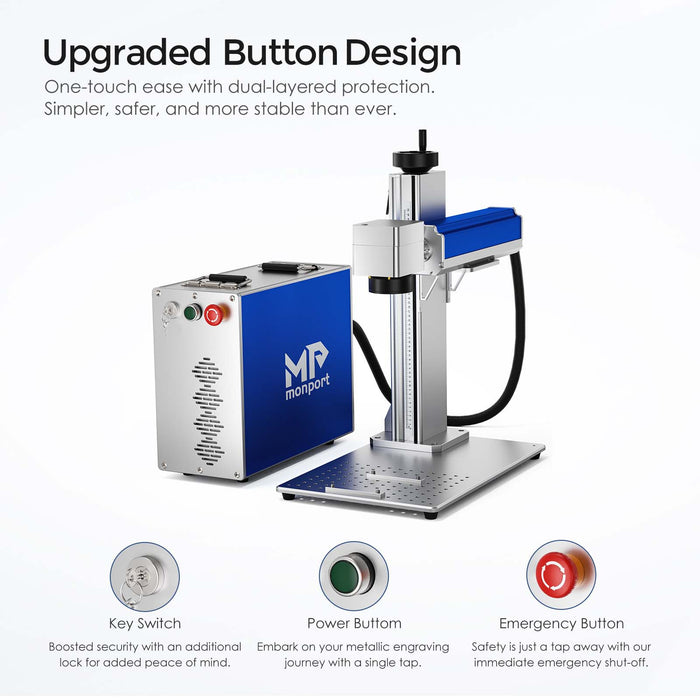

Upgraded Button Design

Equipped with an emergency button for instant response. Our key switch bars unauthorized access, and the dual fans ensure continuous, stable operation.

Pre-assembled Fiber Laser

Monport split fiber machine arrives ready right out of the box, eliminating setup hassles. Dive straight into your metal engraving projects and bring your creative visions to life effortlessly.

Advanced Work Space

This laser machine has a built-in workspace grid with removable positioning bars for precise material placement. It also supports an optional rotary axis (not included) to mark tubes, bottles, pipes, and other curved surfaces.

Portable Size

The most versatile machine can accept a wide range of accessories sizes and fits well on a desk or can be taken in any studio easily.

Additional Laser Guidance

Once properly adjusted, the external red dot locator calibrates with the laser's scanner to allow a quick and accurate laser focus setup.

Manual Focus

By rotating the focus-height wheel, you can quickly focus the galvanometer laser on various materials like gold, silver, brass, stainless steel, etc . Plus, the vertical supporting tower is equipped with a ruler for convenient focus height measurements.

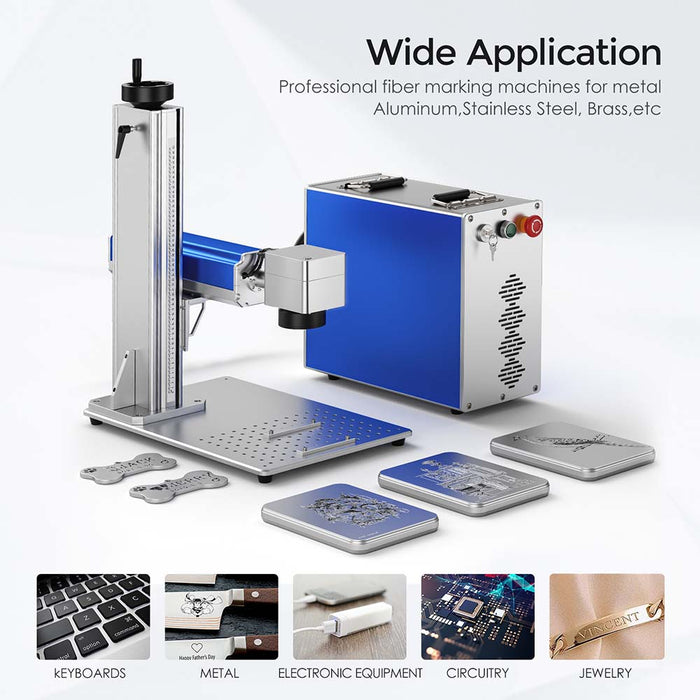

Material Capability

Metals: Stainless Steel, Aluminum, Common Alloys, anodized aluminum, Brass, Chromium, Gold&Silver, Titanium

Non-Metals: Slate, Hard Plastics, Artificial Leather, Colored Acrylic

Package Contents
  • 50 Watt Fiber Laser Marker Machine *1
  • Power Cable *1
  • Foot Pedal *1
  • Laser Safety Glasses *1
  • USB Flash Drive *1
  • Clips *2
  • Bolts *4
  • Instruction Manual *1
Warranty & Certifications
  • 2-year warranty on every fiber laser machine
  • 1-year warranty on fiber laser source
  • FDA Approved & CE Certified
Manual List

Video

Video

Fiber laser source
Fiber laser source estimated lifetime of up to 100,000 hours 10,000 mm/s maximum speed Galvo-tech's drive and scanning system offers outstanding precision and enables fast, stable marking at speeds of up to 10,000 mm/s on a flat surface.
100,000 hours
Galvo-tech
Effortless precision with adjustable focus height wheel
Precise focusing is achieved by simply adjusting the focus height knob. Whether you're working on complex designs or large engravings, the adjustable focus height ensures optimal laser performance for every project.
Red Dot Guidance
Manual Focus
Improved precision with fiber laser limit switches
The fiber laser limit switch ensures precise and consistent positioning, especially for delicate items that are naturally difficult to align during engraving. This feature optimizes accuracy and efficiency in laser marking operations and maintains a stable focus point for complex designs.
Speed: 10000mm/s
Various Materials
Rotary Surface Carving
With rotary axis, the fiber laser can easily curving engrave.If you need to engrave rings, bracelets, or other curved surfaces, simply connect your rotary attachment (not included) via the plug-and-play 4-pin connection port.
Curved Surfaces
Accuracy: 0.01mm
Compare GQ Fiber Laser Model
Product GQ 30 GQ 50
Model JL-F30W JL-F50W
Input Power 110-120V 60Hz
Rated Power 30W 50W
Expected Service Life 100,000 hr.
Central Wavelength 1064 nm
Laser Frequency 40-60 kHz 50-100 kHz
Beam Diameter 5.7-8 mm 5.7-8 mm
Beam Quality M2 ＜1.6 ＜1.6
Maximum Pulse Energy 0.75 1
Processing Area 5.9x5.9 in.
(150×150 mm)		 7.9x7.9 in.
(200×200 mm)
Max. Marking Speed 393.7 ips(10000 mm/s)
Min. Marking Depth 0.0002 in.(0.005 mm)
Max. Marking Depth
on a Single Pass		 0.003in.
(0.08mm)		 0.004in.
(0.1mm)
Min. Line Width 0.006 in.(0.15 mm)
Precision ±0.1 µm
Required Operating
Environment		 Max. Humidity <70%
Temp. Range 32-104°F(0 - 40°C)

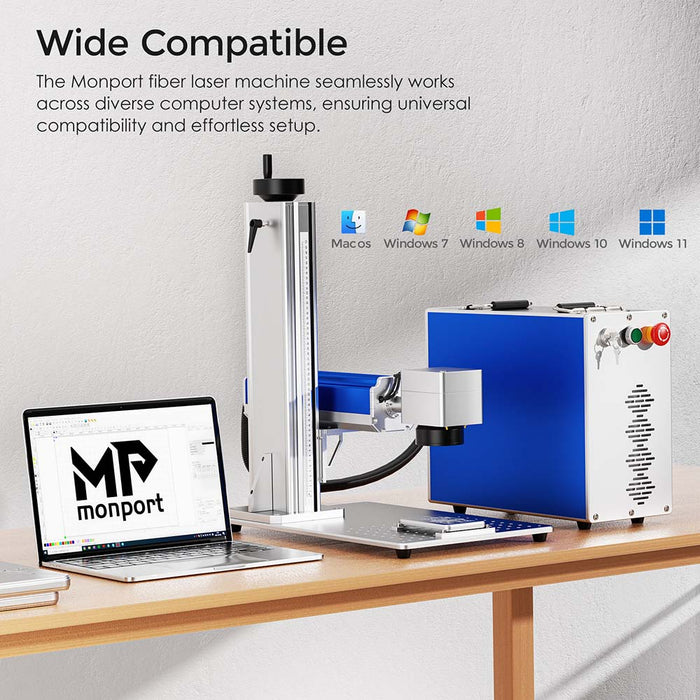

Compatible Software EZCad or BslAppSimple (Coexistence of new and old versions, with the new version being BslAppSimple and the old version being EZcad)
MOPA vs Fiber Laser——Which One Fits Your Engraving Needs？
Feature MOPA Laser Fiber Laser
Engraving Type Color making，fine engraving Deep，fast engraving
Materials Stainless steel，aluminum，plastics Metals（gold，silver，iron，steel）
Pulse Cintrol Adjustable Fixed
Applications
 		Jewelry，logo marking ，electronics Tools，automotive，metal plates
Price Range
 		Higher More affordable
