Metal Engraving Machine Guide: Choosing the Right Laser Machines for Metal

Choosing the right metal engraving machine is about more than selecting the highest wattage. The type of metal, engraving depth, level of detail, production speed, working area and software compatibility all affect which machine will work best for your projects.

Modern fibre laser machines can handle a wide range of metal engraving and marking applications. MOPA fibre technology is particularly useful when you need greater control over frequency and pulse width for applications such as colour marking, dark marking on anodised aluminium, detailed engraving and other specialised finishes.

If you are comparing a 30W, 60W or 100W system, understanding what those differences actually mean can help you avoid paying for power you do not need—or choosing a machine that is not powerful enough for your workload.

What Is a Metal Engraving Machine?

A metal engraving machine uses a concentrated laser beam to create marks, patterns, text or engraved designs on metal surfaces. Fibre laser technology is commonly used for this type of work because it is designed for applications involving metals.

The final result depends on several settings rather than laser power alone. Speed, frequency, pulse width, focus and the characteristics of the material all influence how the surface reacts to the laser.

This is where MOPA technology can be useful. With adjustable frequency and pulse width, MOPA fibre systems give users greater control when working on different metal applications.

What Should You Look for in Laser Machines for Metal?

Before choosing between different laser machines, consider what you actually plan to engrave.

Consider Your Materials

Think about the metals you will use most often. Stainless steel, titanium and anodised aluminium can require different approaches depending on the finish you want.

MOPA fibre systems can be particularly versatile for specialised applications. Depending on the settings and material, they can be used for stainless-steel colour marking, anodised aluminium black marking, conventional marking, precision cutting and drilling applications.

For a jewellery business, for example, detailed personalisation may be more important than maximum power. A workshop marking industrial components, on the other hand, may benefit from higher power and greater engraving depth.

Understand Laser Power

Laser power is one of the biggest differences between laser machines.

A 30W machine can be appropriate for detailed engraving and marking where extreme power is not required. A 60W system provides additional power for users who need deeper engraving and greater production capability.

A 100W machine is intended for more demanding professional and industrial applications where higher power can provide advantages for deep engraving and production work.

More power does not automatically mean better engraving. The best choice is the machine that provides enough power for the work you actually perform.

Why MOPA Technology Matters

MOPA fibre technology gives users control over laser frequency and pulse width.

This flexibility can be useful when working on different materials and trying to achieve specific marking results. The Monport GA series, for example, provides a frequency range of 1–3000 kHz and pulse width of 2–500 ns, while the GM Pro models provide a frequency range of 1–4000 kHz and pulse width of 2–500 ns.

This makes MOPA technology particularly interesting for businesses that want to offer more than standard engraving.

Applications can include colourful stainless-steel marking, anodised aluminium black marking, detailed engraving, industrial identification and personalised products.

Working Area and Machine Size

Working area is another important consideration when selecting a metal engraving machine.

The Monport GM 30W Pro and GM 60W Pro both have a 6.9 × 6.9-inch engraving area, equivalent to 175 × 175 mm. Monport states that this is the optimal working area for these models and that going beyond this size may result in poorer engraving results or distortion.

The Monport GA 60W and GA 100W also have a 6.9 × 6.9-inch working area.

A compact working area can be perfectly practical for jewellery, tools, nameplates, small components and personalised products. It also helps keep the overall machine footprint manageable in a workshop.

Autofocus Can Make Setup Easier

Focusing the laser correctly is essential for consistent engraving.

The Monport GA 60W and GA 100W feature one-click autofocus technology with a stated focusing error of less than ±1 mm. Manual focusing is also possible, with three red lights supporting the focusing process.

The GM 30W Pro and GM 60W Pro also feature one-touch autofocus.

For someone producing multiple items throughout the day, autofocus can make the setup process quicker and reduce the need to repeatedly adjust the focus manually.

Comparing Monport Metal Engraving Machines

Monport offers several MOPA fibre options with different power levels. The following models are worth comparing if your work involves professional metal marking and engraving.

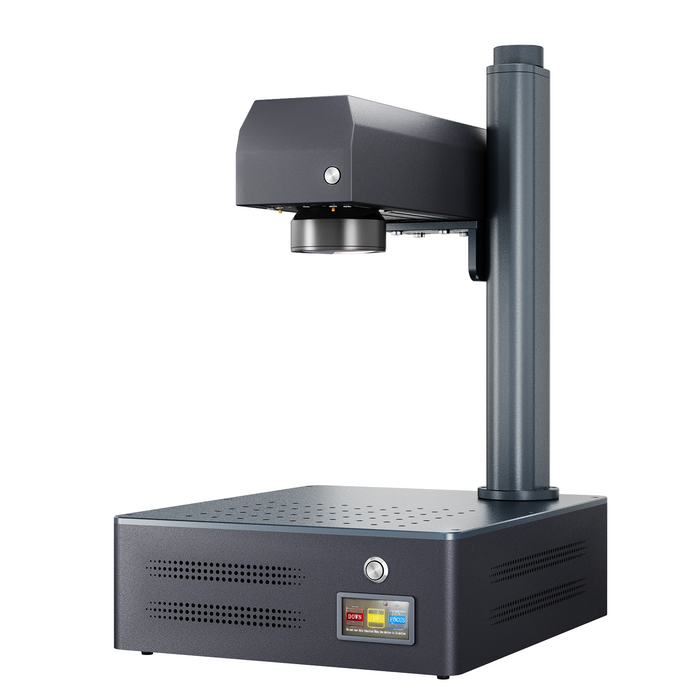

Monport GM 30W Pro

The Monport GM 30W Pro is a 30W MOPA fibre metal engraving machine designed around a compact professional setup.

It has a 1064 nm wavelength, a 1–4000 kHz frequency range and a 2–500 ns pulse width. The engraving area is 6.9 × 6.9 inches (175 × 175 mm), with a maximum engraving speed of 10,000 mm/s or 393.7 ips.

The machine measures 400 × 330 × 620 mm and weighs 15.6 kg. It operates at a rated voltage of 220V and is compatible with Windows and macOS.

For software, it supports BslAppSimple and LightBurn. Its expected service life is listed as 100,000 hours.

The GM 30W Pro also features one-touch autofocus, a newly designed galvanometer system, a custom F-theta field mirror and stated engraving accuracy of 0.01 mm.

Monport GM 60W Pro

The GM 60W Pro increases the laser power to 60W while maintaining the same compact 400 × 330 × 620 mm dimensions.

It weighs 16.6 kg and uses a MOPA fibre laser with a 1064 nm wavelength. Its frequency range is 1–4000 kHz, while its pulse width ranges from 2–500 ns.

The engraving area is 6.9 × 6.9 inches (175 × 175 mm), with a maximum engraving speed of 10,000 mm/s or 393.7 ips.

Like the GM 30W Pro, it is compatible with Windows and macOS and works with BslAppSimple and LightBurn. It also has a stated expected service life of 100,000 hours.

For users who need deeper engraving and 3D relief engraving capabilities while retaining a relatively compact machine, the additional 60W power provides more capacity than the 30W model.

Monport GA 60W

The Monport GA 60W is a 60W MOPA fibre laser machine with an integrated design and autofocus system.

It has a 6.9 × 6.9-inch working area and uses a 1064 nm wavelength. The machine measures 42 × 35 × 62 cm, while the package measures 74 × 61 × 36 cm.

Its listed marking speed is 10,000 mm/s, with a maximum speed of up to 15,000 mm/s. The expected service life is 100,000 hours.

The GA 60W features an aluminium body with integrated optics, an integrated autofocus and galvanometer system, and a vertical arm that can rotate through ±90°.

Its autofocus system has a stated error of less than ±1 mm. Users can also manually focus the machine using the three red lights.

The frequency can be adjusted from 1–3000 kHz, while the pulse width can be adjusted from 2–500 ns.

Monport GA 100W

For users who need the highest power among these four models, the Monport GA 100W provides 100W of MOPA fibre laser power.

It has a 6.9 × 6.9-inch working area and uses a 1064 nm wavelength. The machine measures 50 × 37.5 × 65 cm, with a package dimension of 75 × 69 × 37 cm.

The listed marking speed is up to 10,000 mm/s, and the expected service life is 100,000 hours.

The GA 100W features an aluminium body with integrated optics, integrated autofocus and galvanometer modules, and a vertical arm with ±90° rotation.

Its one-click autofocus system has a stated error of less than ±1 mm, while manual focusing is also available using three red lights.

The frequency range is 1–3000 kHz and the pulse width range is 2–500 ns.

For professional and industrial users working with deep engraving, detailed marking, colour marking and other demanding applications, the 100W configuration provides the greatest laser power among these options.

Which Metal Engraving Machine Is Right for You?

There is no single metal engraving machine that is automatically best for every user.

If you primarily work with detailed personalised products and do not need maximum power, the GM 30W Pro may provide the capabilities you need. Its 30W output, 0.01 mm stated accuracy and 175 × 175 mm working area make it a practical professional option.

The GM 60W Pro and GA 60W sit in the middle. Both provide 60W of power, making them suitable for users who want more capability for deeper engraving and production work.

The GA 100W is the most powerful option in this comparison. It is better suited to professionals and industrial users whose work genuinely benefits from 100W of MOPA fibre laser power.

Other Features Worth Considering

A good metal engraving machine should fit comfortably into your actual workspace.

The GA 60W and GA 100W use integrated aluminium bodies and folding vertical arms. The arm can be adjusted through ±90°, giving users more flexibility when positioning the laser for different marking jobs.

Both GA models are also designed for quick installation. Their foldable vertical arm requires tightening two screws, with Monport stating that beginners can complete installation within one minute after unboxing.

The GM Pro models focus on a compact integrated design as well. Both are listed at 400 × 330 × 620 mm, while the GM 30W Pro weighs 15.6 kg and the GM 60W Pro weighs 16.6 kg.

Software compatibility should also be considered before purchasing. The GM 30W Pro and GM 60W Pro are compatible with Windows and macOS and support BslAppSimple and LightBurn.

Choose the machine that matches your materials, production requirements and available workspace rather than simply choosing the highest wattage.

Key Takeaways

• A metal engraving machine should be chosen based on material, engraving depth, detail, production volume and workspace.

• MOPA fibre technology provides adjustable frequency and pulse width for greater control over different marking applications.

• The Monport GM 30W Pro provides 30W of power and up to 10,000 mm/s engraving speed.

• The Monport GM 60W Pro provides 60W of power, 0.01 mm stated accuracy and up to 10,000 mm/s engraving speed.

• The Monport GA 60W provides 60W of power and a maximum speed of up to 15,000 mm/s.

• The Monport GA 100W provides 100W of power for users who need greater capacity for demanding engraving applications.

• All four models use a 1064 nm wavelength and have a stated expected service life of 100,000 hours.

• Working area matters: the GM 30W Pro, GM 60W Pro, GA 60W and GA 100W all use a 6.9 × 6.9-inch working area.

• Autofocus, software compatibility and machine dimensions can be just as important as laser power when choosing between laser machines.

Conclusion

The right metal engraving machine depends on what you need to produce rather than simply how much power you can buy. A 30W system can be enough for detailed work, while 60W provides additional capacity and 100W is suited to more demanding professional and industrial applications.

When comparing laser machines, pay attention to the complete specification: laser power, 1064 nm wavelength, working area, marking speed, MOPA frequency and pulse-width control, autofocus, software compatibility and machine size.

The Monport GM 30W Pro, GM 60W Pro, GA 60W and GA 100W each offer a different level of capability. Understanding those differences makes it easier to choose a metal engraving machine that fits your actual work instead of paying for features you may not use.

For workshops and businesses, the goal is simple: choose laser machines that provide the control, power and consistency your projects require, then build your workflow around those capabilities.

Choose the right engraving power for your work, make the most of MOPA control, and select a machine that can grow with your metal engraving projects.

Frequently Asked Questions

What is the best laser machine for engraving metal?

The best metal engraving machine depends on the required engraving depth, material, production volume and level of detail. A 30W machine can suit detailed work, while 60W and 100W options provide greater power for more demanding applications.

What type of laser is best for engraving metal?

Fibre laser machines are designed for many metal marking and engraving applications. MOPA fibre technology can provide additional control through adjustable frequency and pulse width, which is useful for specialised marking.

Can a 30W laser engrave metal?

Yes. A 30W MOPA fibre metal engraving machine, such as the Monport GM 30W Pro, can be used for metal engraving and marking applications. The GM 30W Pro has a 1064 nm wavelength, 175 × 175 mm engraving area and maximum engraving speed of 10,000 mm/s.

Is 60W or 100W better for metal engraving?

Neither is automatically better. A 60W metal engraving machine can provide a useful balance between power and capability, while a 100W machine is better suited to applications that genuinely require greater laser power, including demanding deep engraving and production work.

Can MOPA fibre laser machines engrave stainless steel?

Yes. MOPA fibre laser machines can be used for stainless-steel engraving and marking. MOPA control also allows specialised applications such as colourful stainless-steel marking when appropriate laser settings are used.
