The Ultimate Laser Etching Machine for Metal

Setting up a real manufacturing shop or expanding a custom engraving business in Australia takes serious machinery. Standard diode or low-wattage fiber units just don't have the muscle when you need to deep-etch thick stainless steel or run color sequences across hundreds of metal parts every day. If you want high-speed production, acquiring a commercial-grade laser etching machine for metal gives you the power to handle heavy-duty jobs with ease. Monport designed the GPro 100W Split MOPA Fiber Laser specifically to solve these bottleneck problems for industrial workshops, jewelry makers, and custom fabricators.

Having a dedicated laser machine for marking changes how fast you can turn raw metal stock into finished products. The GPro 100W uses MOPA technology, which means you get full control over pulse width and frequency, letting you create vibrant color marks on stainless steel, dark black finishes on anodized aluminum, or fine marks on delicate plastics without melting the material.

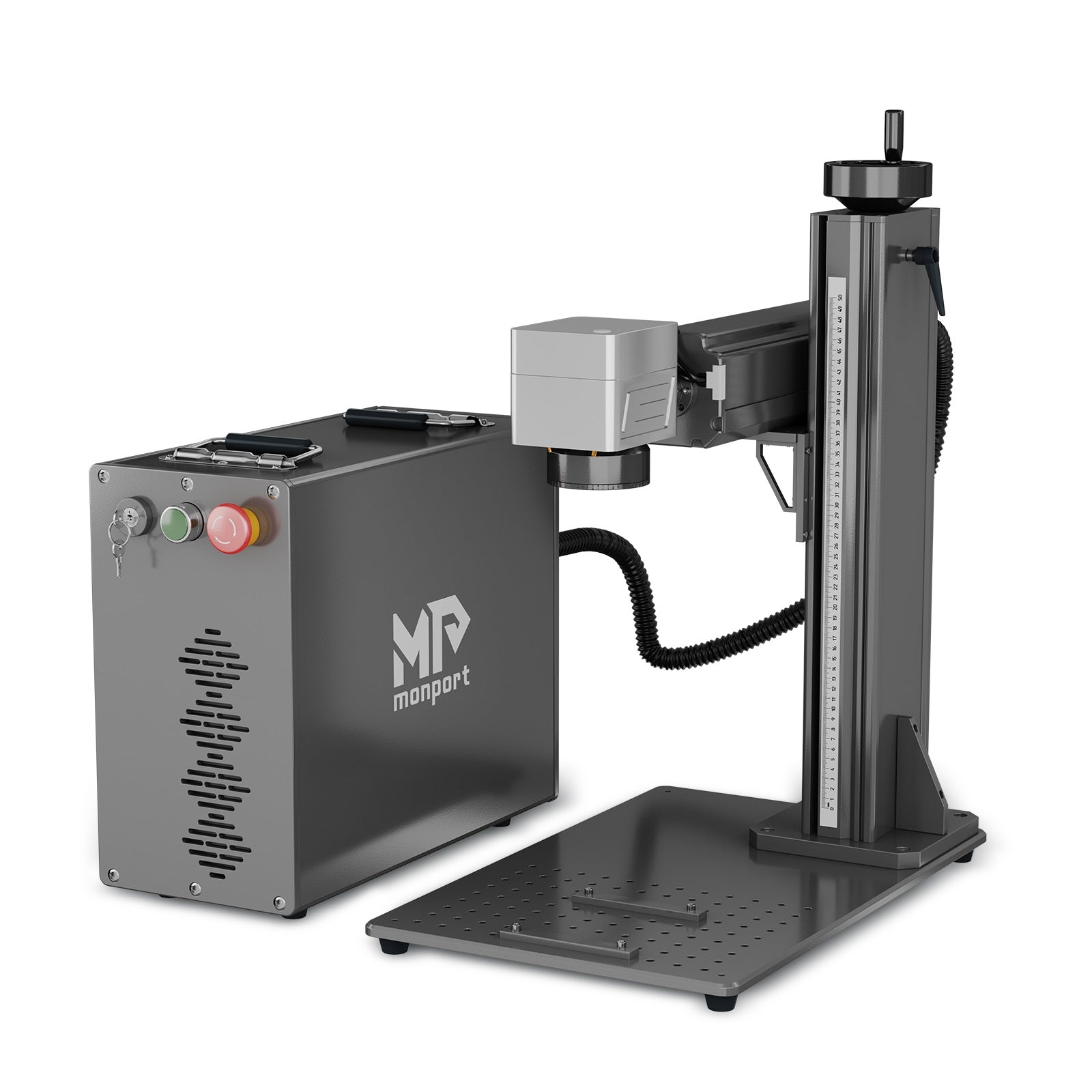

Monport GPro 100W Split MOPA Fiber Laser Engraver & Marking Machine With Manual Focus| Free LightBurn Software Limited Time

Why Monport Lead the Fiber Laser Industry in Australia

Monport built a reputation across Australia and globally by providing industrial power without the bloated enterprise price tag. The GPro series stands out because it focuses strictly on what working professionals actually need: raw speed, optical precision, and reliable internal hardware.

Rather than using budget optical components that drift over time, Monport builds the GPro 100W with top-tier components like the Sino-Galvo RC1001 galvanometer. This delivers rapid positioning and high stability, keeping the laser beam focused even during long 12-hour production runs. Paired with high-power Quartz F-Theta field lenses, the beam stays consistent across the entire 6.9" x 6.9" working area.

Deep Dive into MOPA Technology and Optics

Standard Q-switched fiber lasers work fine for basic serial numbers, but they lack the flexibility needed for sensitive or detailed color jobs. The 100W MOPA (Master Oscillator Power Amplifier) engine inside the GPro lets you adjust frequency from 1 to 3000kHz and fine-tune pulse width between 2 and 500ns.

• Vibrant Color Marking: By controlling heat buildup, you can create bright, oxide-layer colors on stainless steel and titanium surfaces.

• Dark Anodized Aluminum Marking: Achieve deep, high-contrast black marks without destroying the protective oxide surface underneath.

• Plastics and Delicate Materials: Fine-tune short pulse widths to mark electronic components, keys, and plastic buttons without burning the edges.

• Deep Metal Carving: Drive the full 100W power into steel, brass, or copper for rapid metal removal, coin minting, and deep mold making.

Industrial Build and Technical Specifications

The GPro 100W features a split cabinet setup. Keeping the control tower separate from the marking column lets you fit the unit into tight workshop spaces or integrate it right alongside external automation rigs and conveyor setups.

If you want to upgrade your shop's capabilities today, Discover More about the Monport GPro 100W on the official store to see current availability.

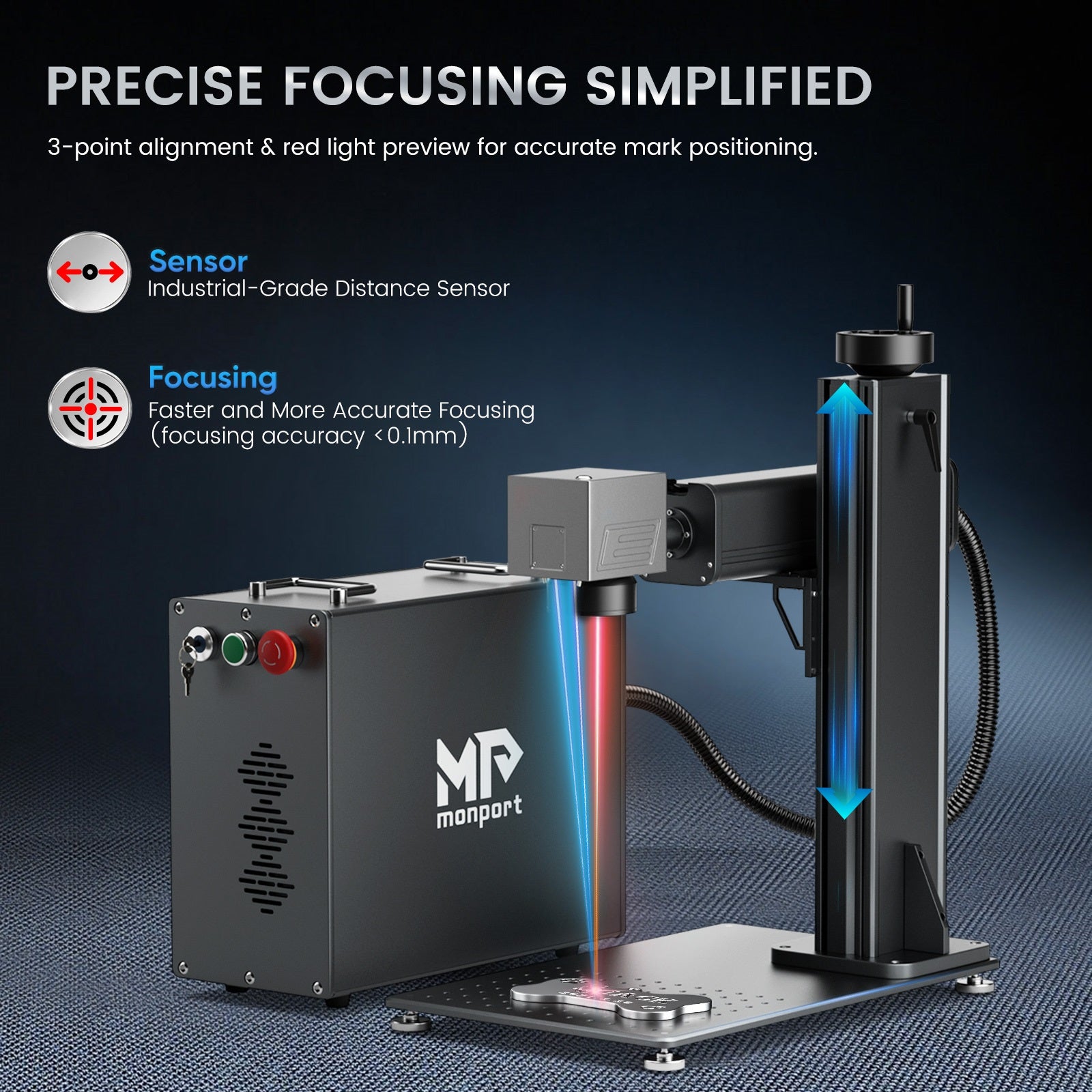

Manual Focus Control and Red Light Alignment

While some basic laser systems use electronic auto-focus, professional machinists know that manual focus control offers better reliability when dealing with stepped surfaces, rounded jewelry, or custom jigs.

The GPro 100W uses a three-point red light alignment system. You simply turn the manual focus wheel until all three red dots merge on your workpiece surface—putting the laser beam right at peak focal depth. Combined with a live red-light bounding box preview, you can check part placement before firing a single pulse, eliminating wasted stock.

Safety is built right into the cabinet. An industrial physical key switch prevents unauthorized operators from firing the unit, while a large E-stop button lets you pause operations instantly if an issue arises.

Software Compatibility Across Mac and Windows

Whether you prefer a Mac desktop or a dedicated Windows shop controller, the Monport GPro 100W fits right into your workflow. It works seamlessly with EZCad and the updated BSLappSimple software, giving you full control over vector fills, pulse shaping, and multi-pass hatch layers.

For Mac users, Monport offers LightBurn compatibility for a limited time. LightBurn provides intuitive vector layout, layer organization, and parameter controls, making design-to-marking workflows much faster.

Project Ideas for Your Monport GPro 100W

With 100 Watts of MOPA power, you aren't limited to basic tags. Here are project lines that Australian shops build using this laser etching machine for metal:

• Custom Firearms & Knife Making: Deep-engrave intricate scrollwork, logos, and checkering into hardened steel slides and custom blades.

• Automotive & Marine Parts: Mark engine VIN plates, custom aluminum valve covers, and stainless fittings with durable 2D matrix codes.

• Personalized Jewelry: Cut custom gold or silver nameplates and mark fine graphics inside rings using an optional rotary attachment.

• Branded Industrial Hardware: High-speed batch production for stainless steel tools, brass valves, and anodized enclosures using a reliable laser machine for marking.

If you're ready to add serious fiber power to your production line, Shop Now for the GPro 100W Split MOPA to claim your free LightBurn access while the promotion lasts.

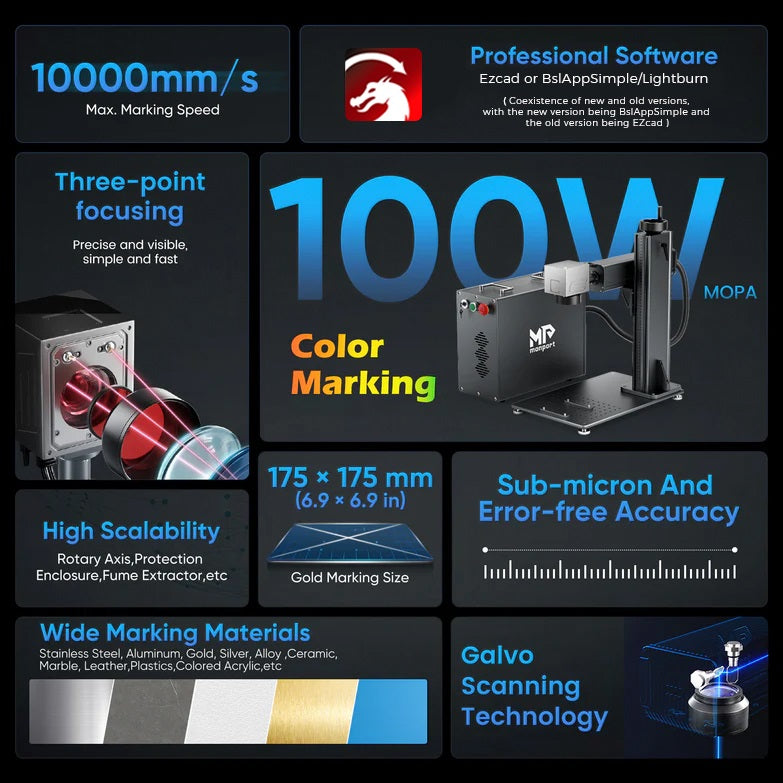

Key Takeaways

• Industrial 100W MOPA Performance: Full control over pulse widths (2-500ns) and frequencies (1-3000kHz) for color marking, deep metal etching, and plastic marking.

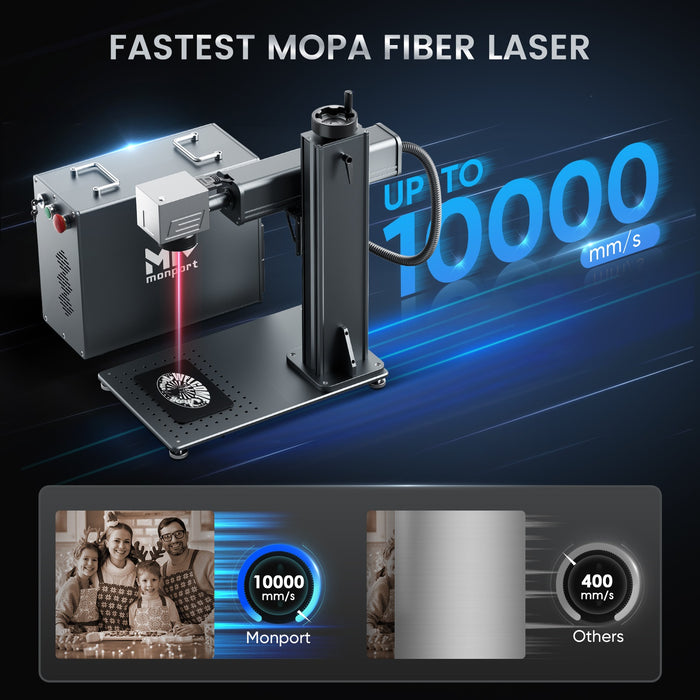

• Top-Grade Sino-Galvo Optics: Exceptional stability and high-speed output at marking speeds up to 10,000mm/s (with maximum speeds reaching 15,000mm/s).

• Versatile Split Cabinet Design: Modular layout makes setup easy in small shops or on production lines.

• Cross-Platform Compatibility: Works on Windows and Mac using BSLappSimple, EZCad, or LightBurn software.

• Save Extra at Checkout: Use code AUBLOG888 at purchase for exclusive savings.

Frequently Asked Questions

Can the GPro 100W engrave non-metal materials like wood?

Fiber lasers operate at a 1064nm wavelength designed specifically for metals, dark plastics, slate, and painted materials. For organic wood cutting, CO2 lasers remain the preferred choice, though the GPro can mark coated wooden surfaces or metal inserts embedded in woodwork.

How does MOPA differ from standard Q-switched fiber lasers?

MOPA engines let you change the laser pulse duration independently of frequency. This extra control prevents heat warping on thin metals and allows for vibrant color marks on stainless steel that standard fiber units cannot recreate.

Is the manual focus system hard to align?

Not at all. The three-point red-dot system makes manual focusing quick and repeatable. Once the three target dots overlap, your beam is in focus without needing tricky test fires.

How long will the laser source last under heavy use?

The 100W fiber laser source has an expected mean time to failure (MTTF) of 100,000 operating hours, providing years of reliable service in industrial shop environments.

What software comes included with the unit?

The machine supports EZCad and BSLappSimple for Windows out of the box. A free LightBurn software package for Mac is also included for a limited time.

Conclusion

Upgrading your workshop equipment with an industrial laser etching machine for metal opens up new revenue streams and speeds up production times. The Monport GPro 100W Split MOPA Fiber Laser combines deep metal cutting power with fine optical precision, making it a great investment for growing businesses across Australia.

Whether you're batch-marking toolsets or deep-carving custom metal art, having a dependable laser machine for marking keeps your production moving without unexpected delays. Shop Now for your Monport Fiber Laser today and step up your shop's laser capabilities.
